Introducing an exceptional solar off-grid system that showcases Grade A solar panels and a premium hybrid solar inverter system.

Package Includes: 22 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm) 1 x DEYE 16kW Hybrid Inverter SUN-16K-SG01LP1-AU (10 Years Manufacturer Warranty) 4 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life) 1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors 2 x PV Safety System with Fuse Box 22 x Commercial Mount Kits Adjustable Angle Version 4 x MC4 Port 1 x Cabinet (dimensions: 63x63x1802mm)

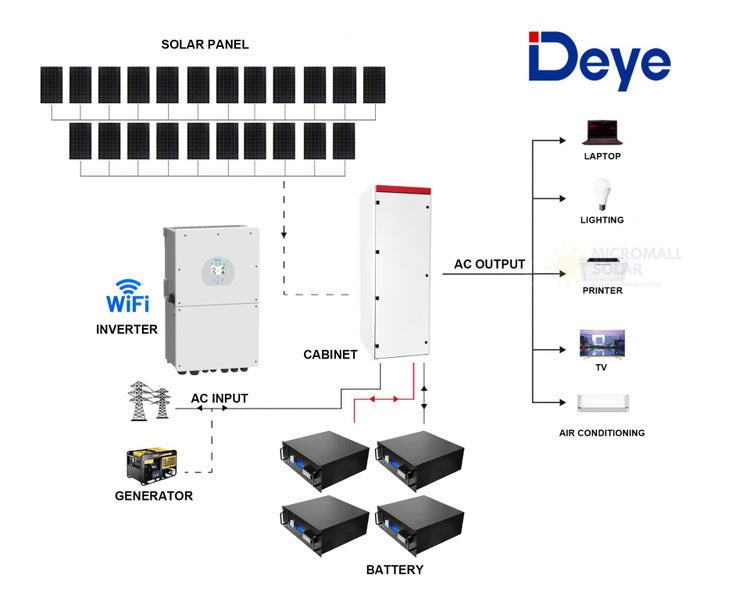

Suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 12/14/16K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

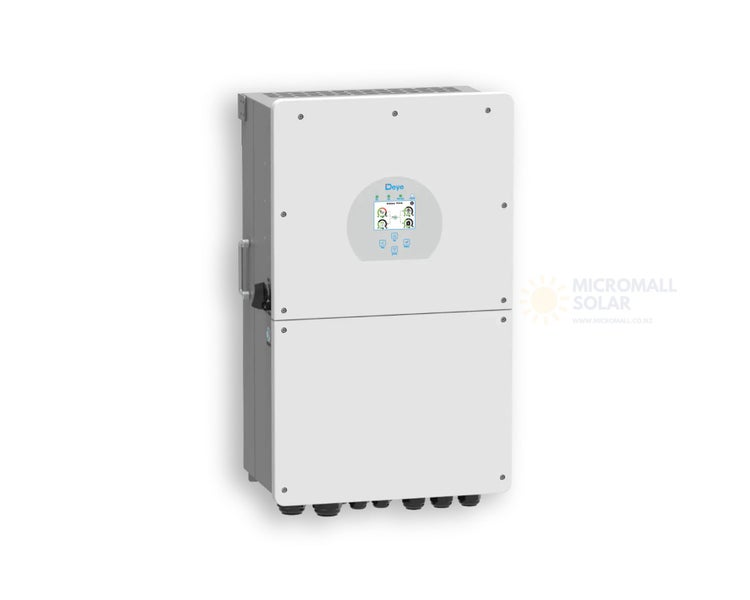

Model: SUN-16K-SG01LP1-AU Battery Input Data Battery Type: Lead-acid or Lithium-ion Battery Voltage Range: 40-60V Max. Charging Current: 290A Max. Discharging Current: 290A Charging Strategy for Li-Ion Battery: Self-adaption to BMS Number of Battery Input: 1 Max. DC Input Power: 24000W Max. DC Input Voltage: 500V Start-up Voltage: 125V MPPT Range: 150-425V Rated DC Input Voltage: 370V MPPT Trackers: 3 Rated AC Output Active Power: 16000W Max AC Output Active Power: 16000W Rated AC Output Current: 69.6A Max AC Output Current: 69.6A Max. Efficiency: 97.60% Max. Efficiency:96.50% MPPT Efficiency: 99.90%
