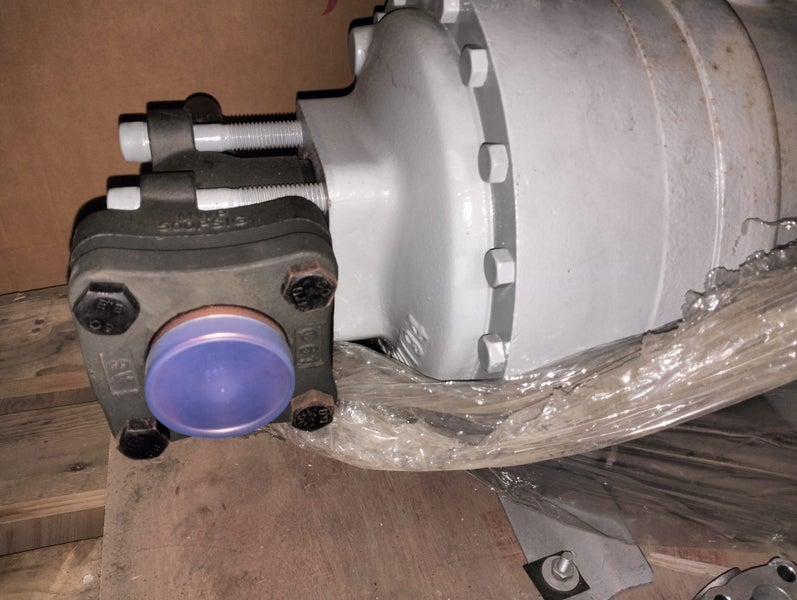

Dimensions Length 33 Inches (In) Width 26 Inches (In) Height 26.5 Inches (In) Weight 582 Pounds (lbs) Attributes 40 HP 6 Cylinder Application A/C Brand Genuine Carlyle Compressor Housing Semi-Hermetic Country Of Origin USA Cycle/Hertz 50/60 Hz Discharge Connection 1 5/8" Sweat Evaporating Temperature 32°F to 53°F (0°C to 12°C) Locked Rotor Amps 345 Mass Flow 99 Mounting Dimensions 8.88"/11.38" x 17.44" Oil Charge Recharge 19 Oil Type Mineral Phase Three Prop 65 Yes Rated Load Amps 75.7 Refrigerant Various Return Gas Temperature 65°F (18.33°C) Suction Line Fitting Sweat or Braze Suction Line Size (OD) 2 1/8" UL Listed Yes UPC Barcode 822529911205 Voltage 400/460 VAC

1 General Application Information Compressors are available for operation in low temperature R-502, medium temperature R-12, and air conditioning R-22 applications. Design modifications allow the use of HFC refrigerants R-134a, R-404A, R-407C, and R-507. This guide provides information and recommendations for the successful application of compressors in A/C and refrigeration systems. Maximum operating conditions of the compressor models are generally defined in the performance curves and will differ with each model. Operating conditions should be controlled so that the discharge gas does not exceed 275°F (135°C) at the discharge service valve and that oil temperature does not exceed 160°F (71°C). For HFC/POE applications the maximum recommended discharge temperature is 250°F (121°C).
