RAM-B-149Z-C1U RAM(R) Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud - Medium Arm

Features

• Includes zinc-coated U-bolt base that accommodates rails from 12.7mm to 31.8mm (.5" to 1.25") in diameter, medium length B size RAM(R) double socket arm
• 63mm Round Base with 1" Ball incorporates 1/4-20 Threaded Male Post for Cameras

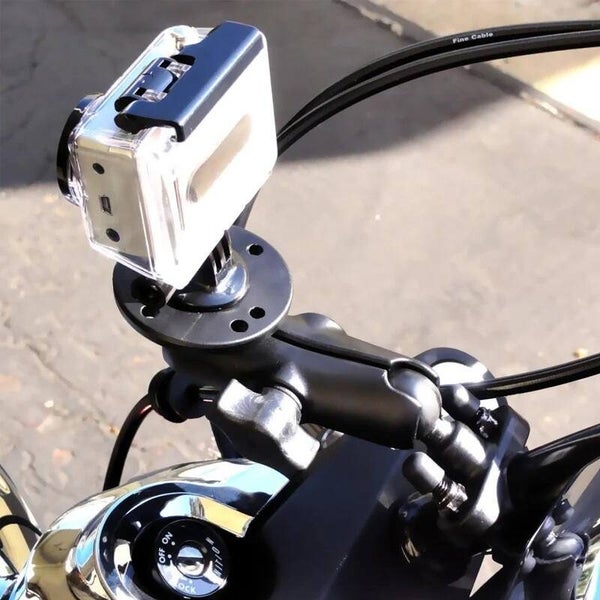

• RAM(R) Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

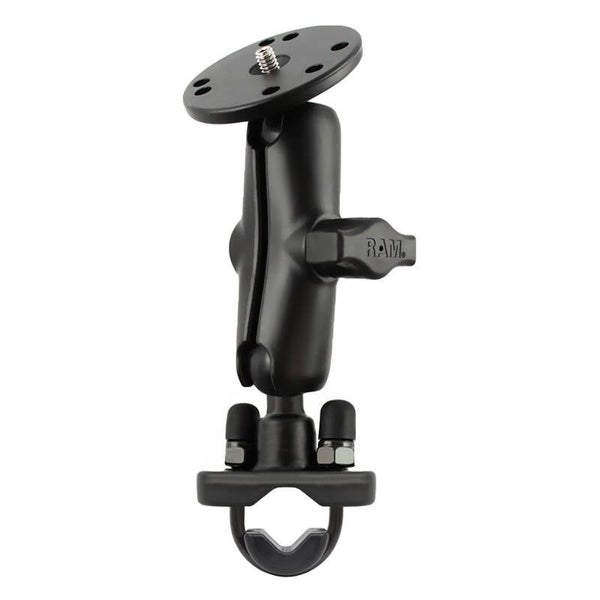

The RAM-B-149Z-C1U consists of a zinc coated U-bolt base, standard size double socket arm and universal 1/4"-20 thread, centered on a 2.5" diameter plate.

The male 1/4" long, 1/4"-20 thread in the middle of the 2.5" diameter plate will connect to the standard female thread found at the bottom of most still and video cameras.

The U Bolt base will accommodate rails from 13-32mm in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

COMPATIBLE DEVICES Cameras that contain 1/4"-20 Female Threaded Hole

HOLE PATTERN 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm) 3-Hole AMPS 120- Degree 1.812" (46.0mm)

Thread Pitch 1/4"-20 x .25"

U-Bolt Dimensions: 13 to 32mm in diameter (0.50" to 1.25")

Arm Dimensions: Overall Length: 94mm (3.69") Socket-To-Socket Length: 76mm (3")

Material: High Strength Composite Powder Coated Marine Grade Aluminium

WEIGHT CAPACITY Standard Use: 907 grams (2 lbs) Heavy-Duty Use: 454 grams (1 lb)

Ball Size: 1" Rubber Ball "B" Size

Weight

313 ...
