RAM-B-101AU RAM Double Ball Mount with 1/4"-20 Male Thread

Features

• Round camera base features with 1/4"-20 camera thread - round plate provides extra support and stability for cameras that rest on top of it
• Drill-down mounting solution - round plate featuring the AMPS hole pattern
• Includes two round ball bases and B size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

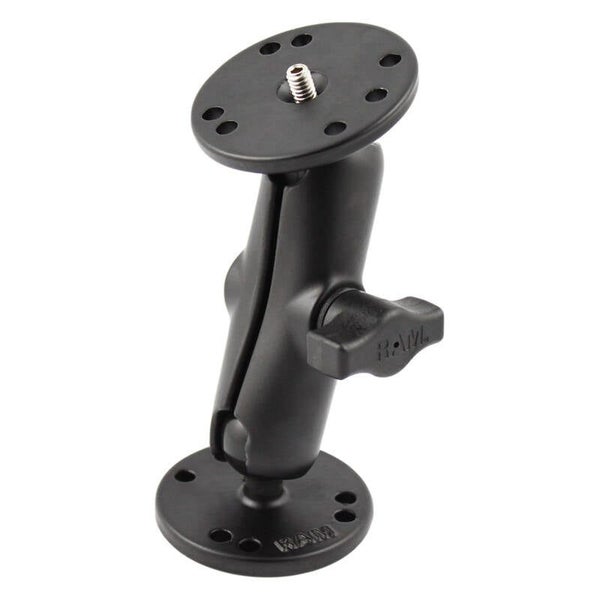

The RAM-B-101AU consists of a double socket arm, one 2.5" diameter round base with the universal AMPS hole pattern and universal camera/camcorder base. The universal camera/camcorder base consists of a 1" diameter rubber ball connected to a 2.5" diameter round base with 1/4-20 camera thread. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.

Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

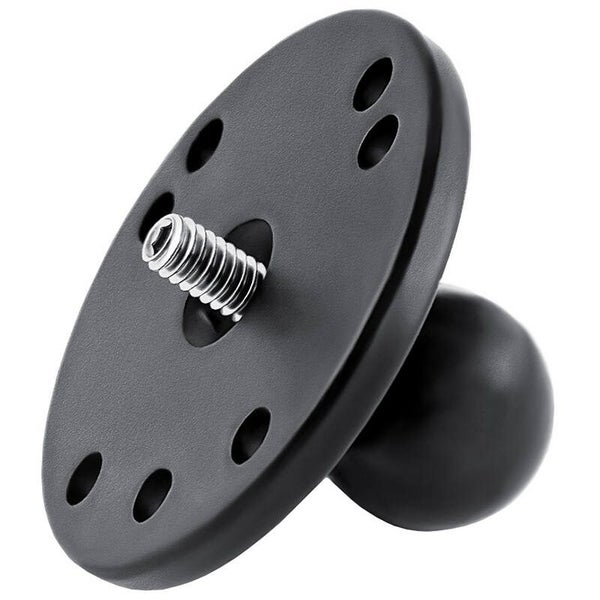

The universal camera and camcorder base, consists of a 1" diameter rubber ball, connected to a 2.5" diameter round plate with 1/4"-20 camera thread. The round plate provides extra support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.

Arm Dimensions:

Overall Length:

60.5mm (2.38")

Socket-To-Socket Length:

51mm (2")

Weight

258 grams (0.57 lbs)

Components: RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL RAM-B-202U 62mm DIA.BASE WITH 1" BALL RAM-B-202AU 63mm ROUND BASE W/STD 1/4 CAMERA THREAD
