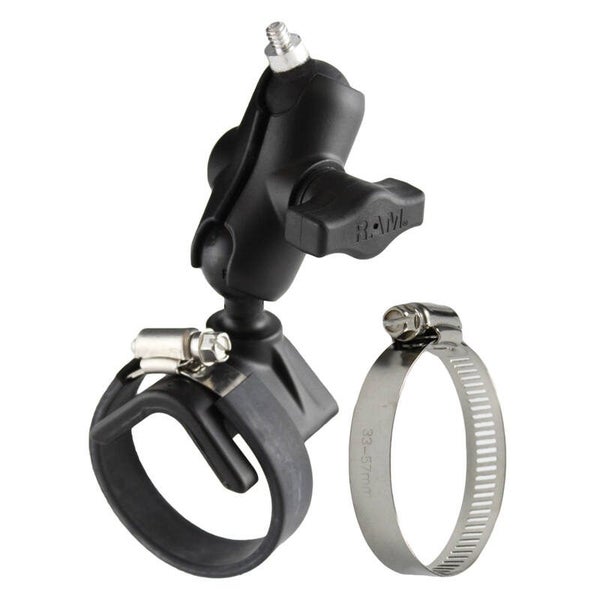

RAM-B-108B-A-237U RAM(R) Strap Hose Clamp Mount with 1/4"-20 Stud.

(Note alternative product code is Midland C1052)

Features

• Saddle-shaped clamp mount ideal for rails ranging from 1" to 2.1" in diameter
• RAM Ball with standard 1/4"-20 camera threads matches the standard female thread on most cameras.
• RAM(R) B size double socket arm and ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Use this V-Shaped strap base when the bar is square or rectangular as opposed to a "U-Bolt" base.

The ball base with standard 1/4"-20 camera threads matches the standard female thread on most cameras.

The rail base has a 1" diameter rubber ball connected at a right angle to a v-shaped base. The base fits rails and roll bars from 5.4mm (1.0") to 53.4mm (2.1") in diameter.

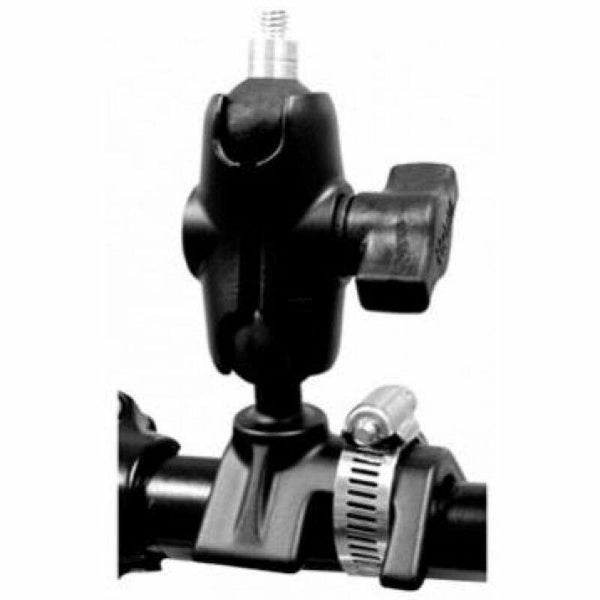

To mount the RAM-B-108BU base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail.

Specs & Features

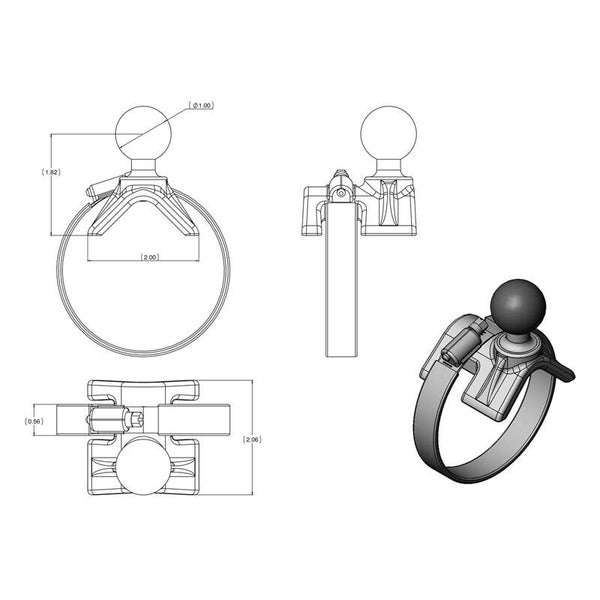

Clamp Dimensions: 25.4mm to 53.3mm (1" to 2.1")

Arm Dimensions: Overall Length: 60.5mm (2.38") Socket-To-Socket Length: 51mm (2")

Compatible Devices: Cameras that contain 1/4"-20 Female Threaded Hole

Material: Powder Coated Marine Grade Aluminium

Ball Size: 1" Rubber "B" Ball Size

Weight

281 grams (0.62 lbs)

YouTube: https://www.youtube.com/watch?v=iO9NEqm9MJk&t=2s

Components: RAM-B-201U-A RAM SHORT DOUBLE SOCKET ARM FOR 1" BALL RAM-B-108BU RAM V BASE BALL AND STRAPS 25-54mm RAM-B-237U RAM 1 BALL WITH STANDARD 1/4 CAMERA MOUNT THREAD
