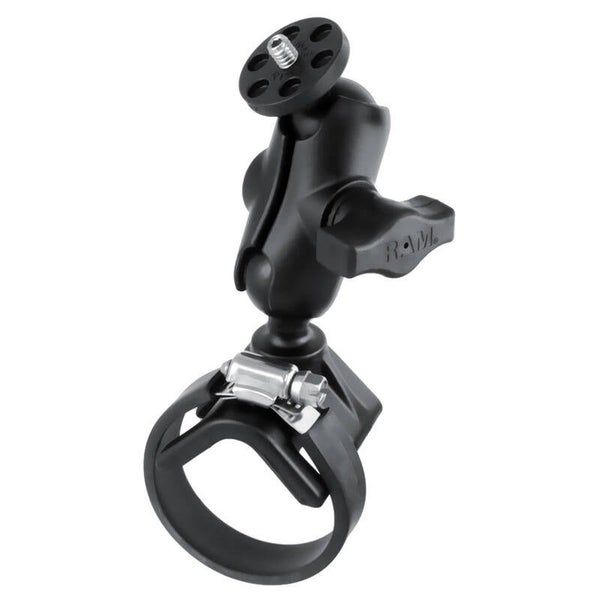

RAM-B-108B-A-366U RAM(R) Strap Hose Clamp Mount with 1/4"-20 Camera Adaptor - Short

Features

• The camera adaptor has the universal 1/4"-20 thread and the round plate provides extra support for your camera
• Saddle-shaped clamp mount ideal for rails ranging from 25-53mm in diameter
• Short B size RAM(R) arm with ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Use this mount as opposed to a "U-Bolt" mount when the rail or bar is square or rectangular.

The RAM-B-108B-A-366U consists of a V-shaped strap base, short double socket arm and 1" ball with 1/4"-20 threaded steel stud. The base accommodates rails from 25.4mm to 53.4mm diameter.

To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The camera plate provides extra support and stability for cameras that rest on top of it.

The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.

Compatible Devices Cameras that contain 1/4"-20 Female Threaded Hole

Hardware Included (1) #20 Worm Drive Strap Clamp (1) #28 Worm Drive Strap Clamp (1) 6" Rubber Strip

Clamp Dimensions: 25.4 to 53.3mm (1 to 2.1")

Arm Dimensions: Overall Length: 60.5mm (2.38") Socket-To-Socket Length: 51mm (2")

Material: Marine-grade aluminium High strength composite

Ball Size: 1" Rubber "B" Ball Size

Weight

222 grams / 0.49 lbs

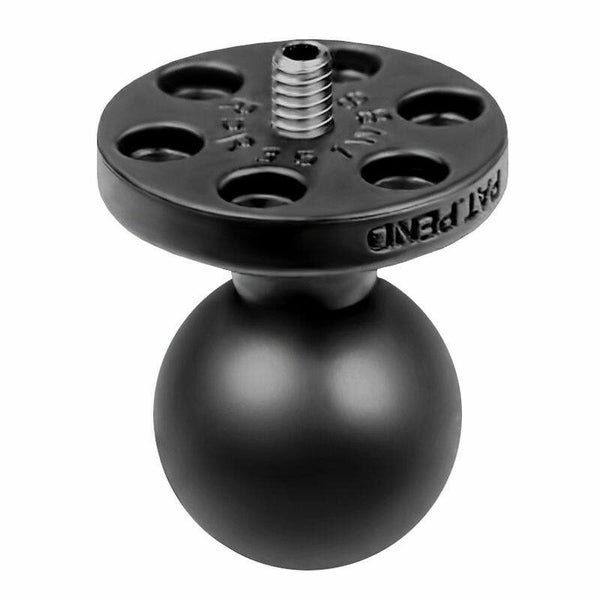

Components RAM-B-108BU - V shaped rail base with 1" ball RAM-B-201U-A - short double socket arm RAM-B-366U - 1" Ball with 1/4-20 Stud for Cameras, Video & Camcorders
