RAM-B-101-237U RAM(R) Drill-Down Double Ball Mount with 1/4"-20 Stud - B Size

Features

• RAM(R) drill down base is ideal when a permanent, stable and secure base is required
• 63mm round plate uses the universal AMPS hole pattern
• The Universal camera and camcorder ball base has a male 1/4"-20 threaded steel stud will connect to any standard camera female thread
• Includes B size medium length RAM(R) double socket arm with ball and socket technology which allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

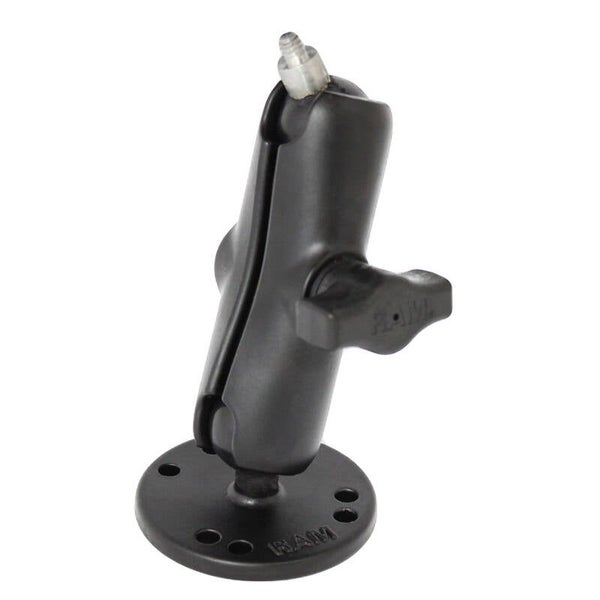

This camera mount comprises of a double socket arm, 63mm diameter round base and a 1" diameter rubber ball connected to a 1/4"-20 camera thread.

The male thread matches most standard camera and camcorder female threads found on the bottom of cameras.

The round base contains pre-drilled holes, including the universal AMPs hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this allows for infinite orientation adjustment and optimum viewing angles.

Arm Dimensions: Overall Length: 94mm (3.69") Socket-To-Socket Length: 76mm (3")

BALL/SOCKET SIZE B Size (1")

ROUND Base Hole Pattern 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm) 3-Hole AMPS 1.812" (46.0mm)

WEIGHT CAPACITY Standard Use: 900g Heavy-Duty Use: 450g

MATERIALS Marine-grade aluminium

Weight

231 grams (0.51lbs )

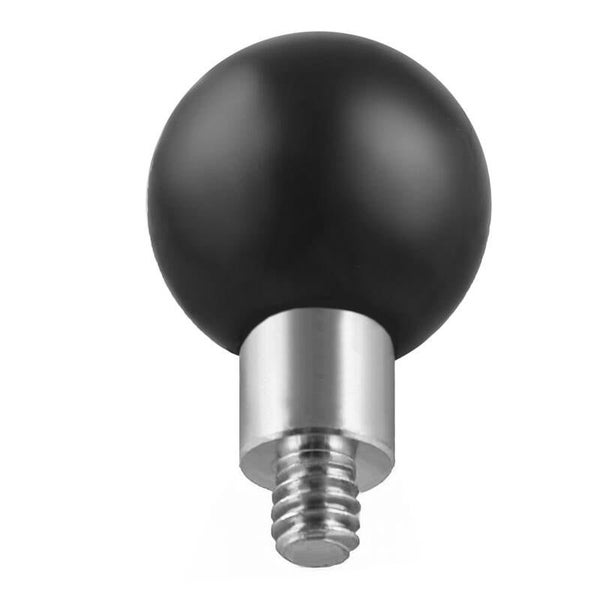

COMPONENTS RAM-B-237U RAM 1 BALL WITH STANDARD 1/4 CAMERA MOUNT THREAD RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL
