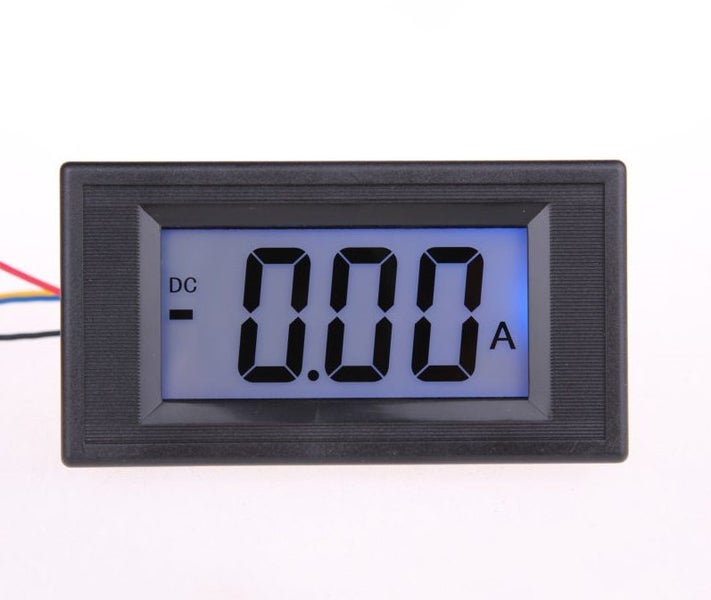

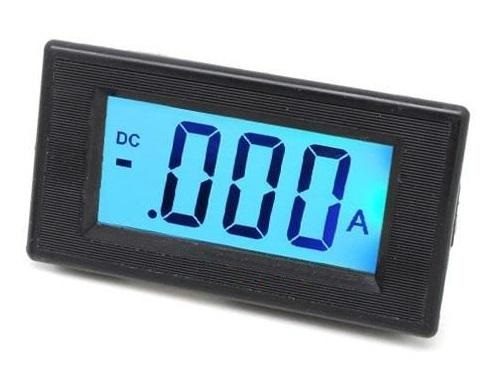

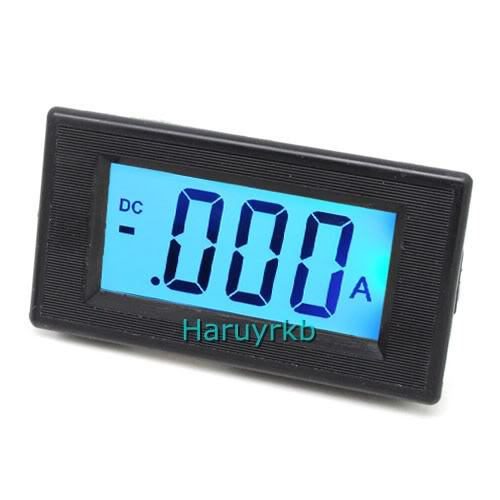

Ammeter Panel LCD +/- 5A 10A 20A 30A 50A 100A 200A 500A Blue Backlight Blue suitable for solar installs

Panel mount ammeter capable of displaying + charge and - discharge suitable for many applications. Features: Lcd backlight colour: BLUE High accuracy Easy to install Digit display type:LED working power supply of AC or DC 9V-12V Accuracy: +/-0.5% Size : 79 mm x 43 mm x 24 mm Installation hole: 76 × 39 mm

Range options
+/- 5A 10A 20A 30A 50A 100A 200A 500A

Red and Black wires 9-12 V to run the module Yellow and Blue wires , across a suitable 75mV shunt (not supplied this auction) 5A and 10A versions have internal shunts so these connections are to the power source and the load. Use the drop down options menu to select a suitable shunt for your meter and if sourcing module supply from same source as load, suitable DC to DC isolation modules. 5A and 20A have internal shunt

1 x Ammeter Panel LCD 5A to 500A range or shunt as per rating - you choose
