Summary

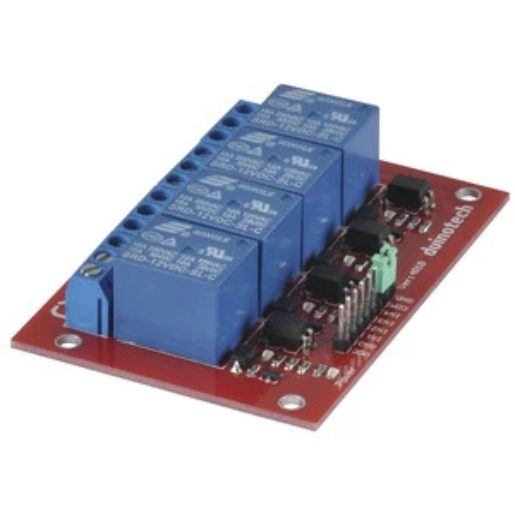

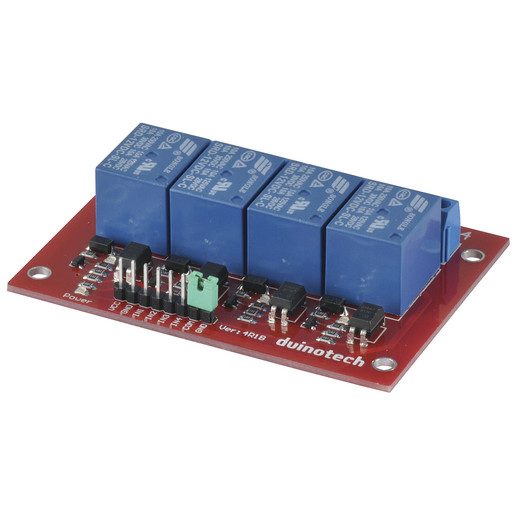

These relay modules provide an easy way to switch real-world devices using your DuinoTECH. Available in one, four, and eight channel versions, they can switch up to 10A per channel. The modules include back-EMF protection and LEDs to indicate output status. The four and eight channel versions feature optical isolation for added protection, while the one channel version operates directly from 5V.

Features

• Status LEDs show channel status
• Active High logic
• Screw terminals for easy connection to relay contacts
• SPDT relays
• Current ratings: 10A @ 250VAC, 10A @ 30VDC
• Four mounting holes on each module

Specifications

• Channels: 1, 4, or 8
• Supply Voltage: 5VDC (1 channel), 12VDC (4 and 8 channels)
• Optical Isolation: No (1 channel), Yes (4 and 8 channels)
• Dimensions (W x D x H):
• 1 channel: 40 x 27 x 18 mm
• 4 channel: 77 x 55 x 17 mm
• 8 channel: 135 x 50 x 19 mm
• Width: 135 mm
• Height: 19 mm
• Depth: 50 mm
• Required Supply Voltage: 12V

Notes

Compatible with Raspberry Pi and Arduino. The modules are designed to protect your DuinoTECH and provide easy connection and status monitoring.
