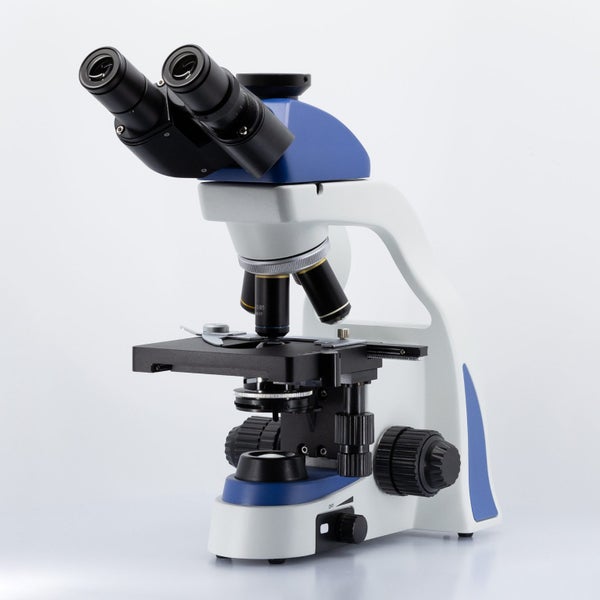

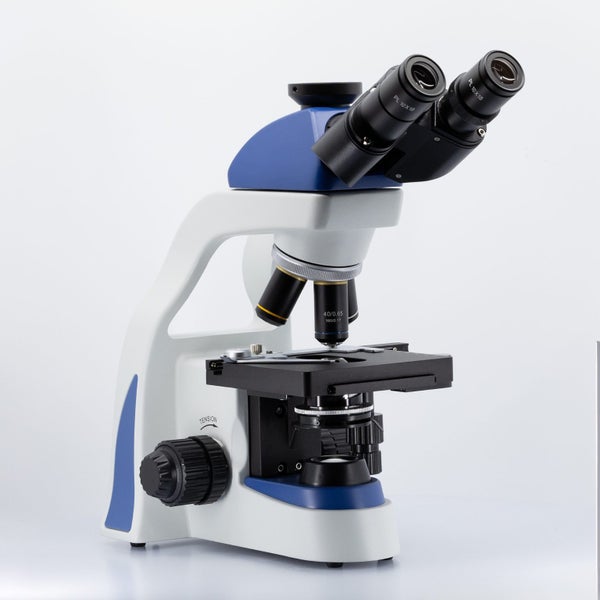

The E3 series biological microscope with easy operation and clear image, opens the door to the science world. Its ergonomics design, handy coaxial coarse and fine adjustment, meet the demand of teaching and research. The next step up from our standard high school microscopes has extra features and the eyepieces provide a sharp image in natural light. This trinocular version has a dedicated camera/video tube and comes with the required C mount. CAMERAS: Eyepiece Type Video Camera Advanced Video Camera

Specifications

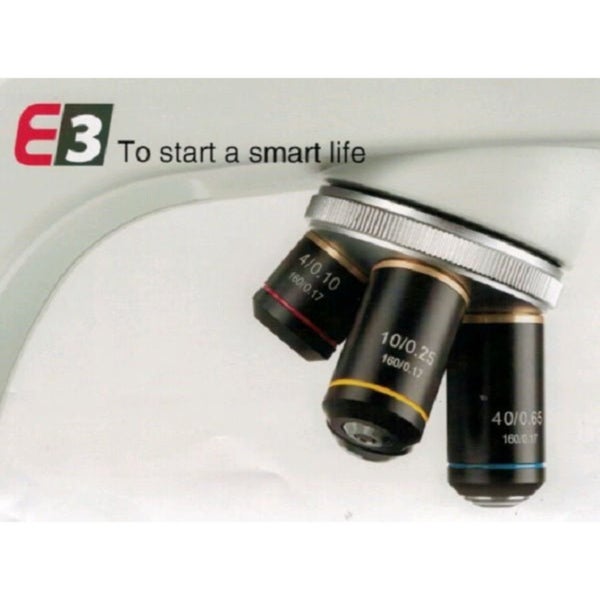

30° inclined trinocular head, with locking mechanism for eyepieces, right diopter adjustment: ± 5; interpupillary distance range: 50-75mm, fixed splitting ratio, R_T=5:5 Eyepiece: Wide field plan PL10X/18mm Quadruple nose piece with four Plan achromatic objectives 4X/10X/20X/40X/100X Focus: Low-position coarse and fine adjustment with stop and tighten structure Illumination: 0.2W LED illumination (color temperature 5700-6500K), intensity adjustable; power output 100V~240V; power input 5V1A; (Rechargeable frame for option). Dimmer control Empty space at the rear for the microscope to store the power cable in. Can be charged via a USB connected to a computer or external power bank for field work. Stage: Fixed with clips, 110mmx120mm (mechanical stage available) Condenser: N.A. 1.25 Abbe condenser with iris diaphragm and filter holder. Camera accessory: 0.35X/0.5X/0.65X/1X C-mount
