KEEL ROLLER- 200MM + BRACKET+'U' BOLT+ 2 X FULL COVER END CAPS +19MM HEX BOLT
Description

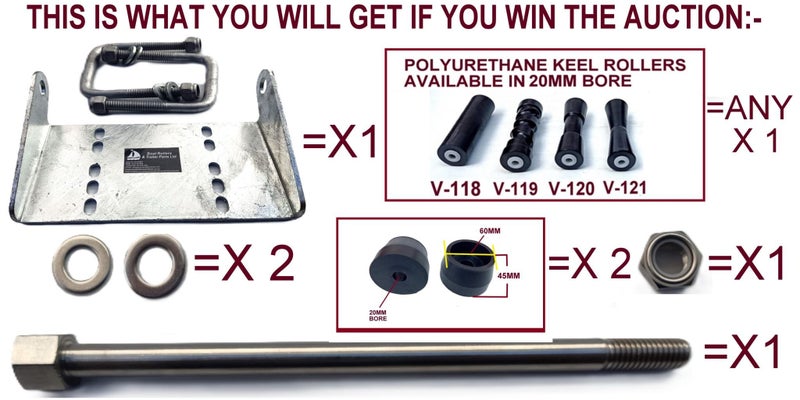

- THIS AUCTION IS FOR ANYONE SET *
1 X SET=
1 X SUPER HEAVY DUTY SINGLE MOULDED BRACKET WITH ANYONE ROLLER OF YOUR CHOICE
1 X295MM 316MARINE GRADE 19MM HEX BOLT WITH NUT.
2 XEND CAPS TO SUIT.
2 X M12 ‘U’ BOLTS WITH WASHERS AND NUTS.
TO WORK OUT THE CORRECT 'U' BOLT SIZE I NEED 'A' & 'B' OF YOUR TRAILER PL. SEE THE AUCTION PHOTO.
YOU CAN SWAP THE 'U' BOLTS WITH A BACKPLATE AND M12MM BOLTS IF THE SHAPE OF YOUR TRAILER IS BOW-LIKE.
THESE ARE MADE FROM POLYURETHANE AND ARE PERFECT FOR ALL TYPES OF BOATS.
THESE ROLLERS ARE BUILT TO STAND THE TOUGHEST OF CONDITIONS AND STILL MAINTAIN THEIR RELIABILITY.

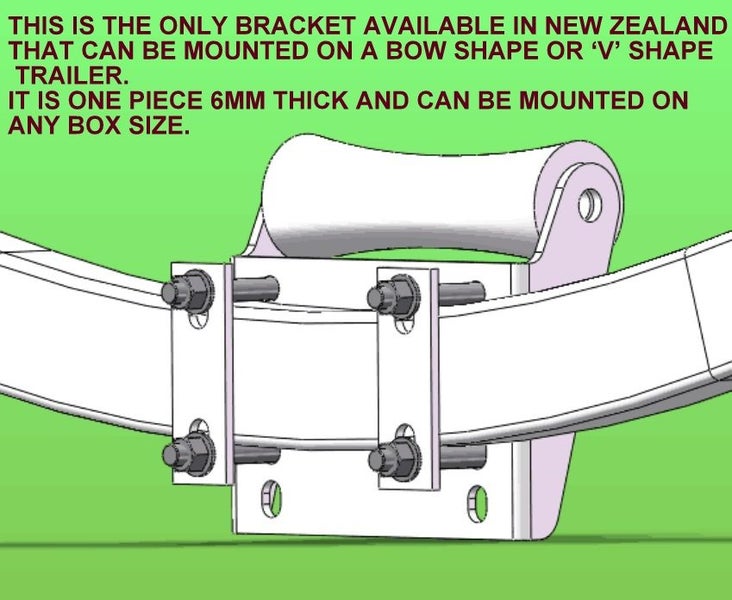

*THIS BRACKET CAN BE MOUNTED ON A BOW SHAPE OR ‘V’ SHAPE OR STRAIGHT BOX TRAILER. IT IS ONE PIECE 6MM THICK.
THESE BRACKETS HAVE 6- HOLES AND CAN BE MOUNTED ON ANY OF THE FOLLOWING FRAME OR BOX OF YOUR TRAILER
THE HEIGHT CAN BE ADJUSTED BY 25MM BY JUMPING A HOLE
50MM X 50MM CAN INCREASE 25MM 50MM X 75MM CAN INCREASE 25MM 75MM X 75MM CAN INCREASE 25MM 50MM X 100MM IS ON A FIXED HEIGHT 75MM X 100MM IS ON A FIXED HEIGHT 100MM X 100MM IS ON A FIXED HEIGHT
- SPECIFICATION *
V-118 LENGTH=200MM FLANGE=70MM(FLANGE DIA) BORE= 20MM
V-119 LENGTH=200MM FLANGE=70MM(FLANGE DIA) BORE= 20MM
V-120 LENGTH=200MM FLANGE=69MM(FLANGE DIA) BORE= 20MM
V-121 LENGTH=200MM FLANGE=69MM(FLANGE DIA) BORE= 20MM
PLEASE LET ME KNOW:-

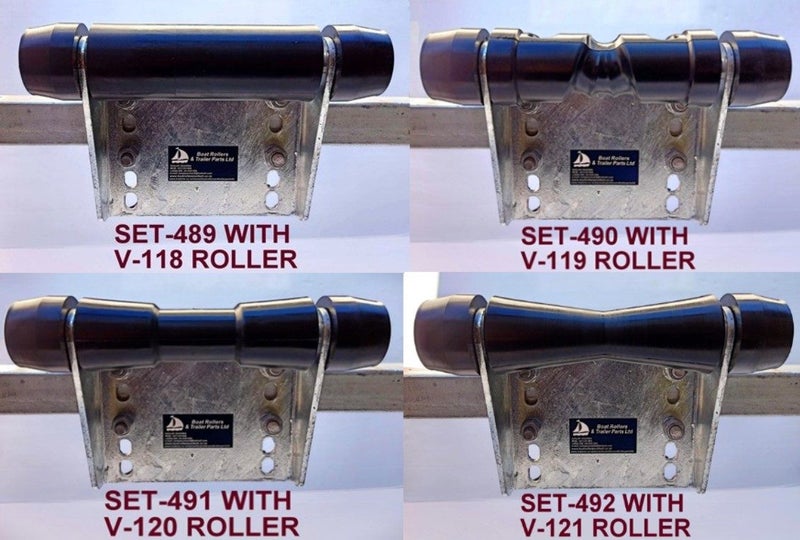

- WHAT SET U ARE AFTER THAT IS SET-489, OR SET-490, OR SET-491, OR SET-492.
- WHAT IS THE BOX/FRAMEWORK SIZE OF YOUR TRAILER THAT IS ‘A’ & ‘B’ SO THAT I CAN GET THE CORRECT 'U' BOLT SIZE. PLEASE SEE THE AUCTION PICTURE FOR DETAILS.
All the best from-Boat Rollers And Trailers Parts Limited a 100% New Zealand-owned Company You can get details from our Website and call us any time. All Auction produce is stocked in New Zealand(Wellington)
POSTAL CHARGES TO GREAT BARRIER, CHATHAM ISLAND, STEWART ISLAND & WAIHEKE ISLAND WILL INCUR ADDITIONAL CHARGES PLEASE INQUIRE BEFORE YOU PURCHASE.
