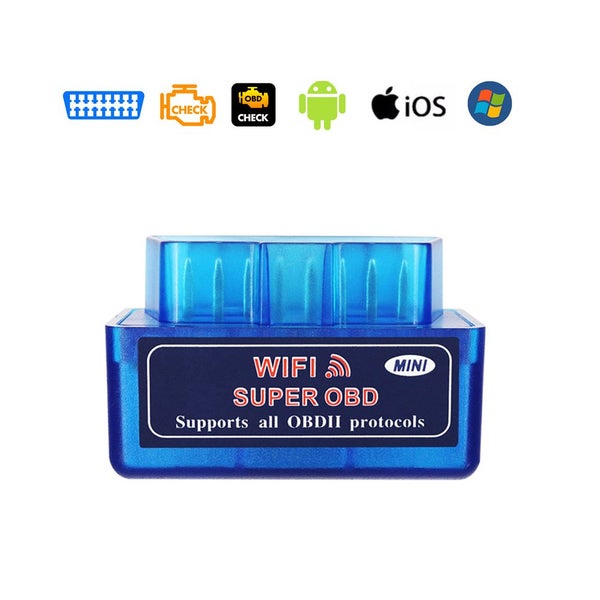

ELM327 Wifi Car Fault Code Reader OBD2 Scanner Dignostic Tool For IOS Android
Description
Functions: 1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
19.Many others.
Support OBD2 Protocols:
1.SAE J1850 PWM (41.6 kbaud)
2.SAE J1850 VPW (10.4 kbaud)
3.ISO 9141-2 (5 baud init, 10.4 kbaud)
4.ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
5.ISO 14230-4 KWP (fast init, 10.4 kbaud)
6.ISO 15765-4 CAN (11 bit ID, 500 kbaud)
7.ISO 15765-4 CAN (29 bit ID, 500 kbaud)
8.ISO 15765-4 CAN (11 bit ID, 250 kbaud)
9.ISO 15765-4 CAN (29 bit ID, 250 kbaud)
Support vehicles:
- American cars after 1998
- European cars after 2000
- Asian cars after 2002 (New Zealand,Austrilia,Japan, South Korea, China, etc.)

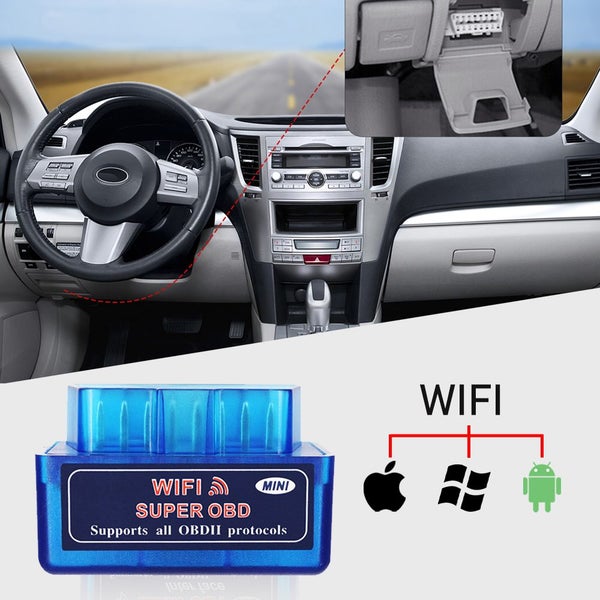

need all cars come with 16pin standard OBD2 interface( don't support diesel cars & electric vehicle)
Specifications:
Connect type :wifi
Dimensions: about 4.7 * 2.5 * 3.1cm
Working Current: 35mA
Standby Current: 25mA
Operating Temperature: -40degree- 85 degree
Voltage: 12V
Android IOS
APP suggest: for Bluetooth :Torque Car Scanner
Package includes:
1 x OBD2 Scanner 1x Box
