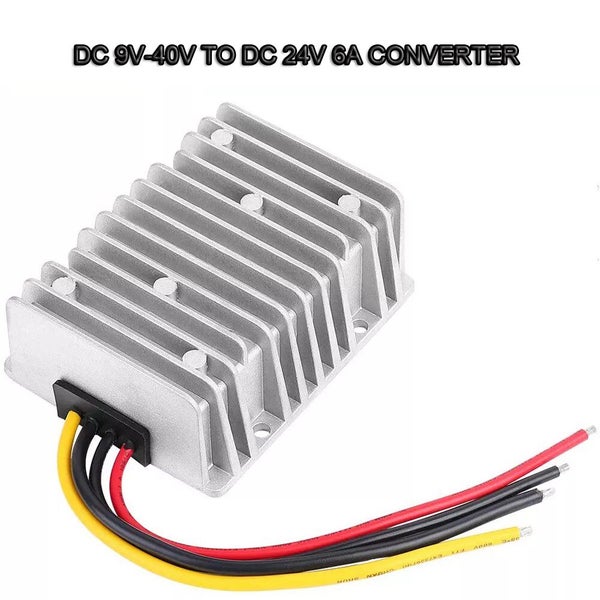

DC 9V-40V Step UP Or Down to 24V 6A 144W DC/DC Power Converter Voltage Regulator
Description
Feature:

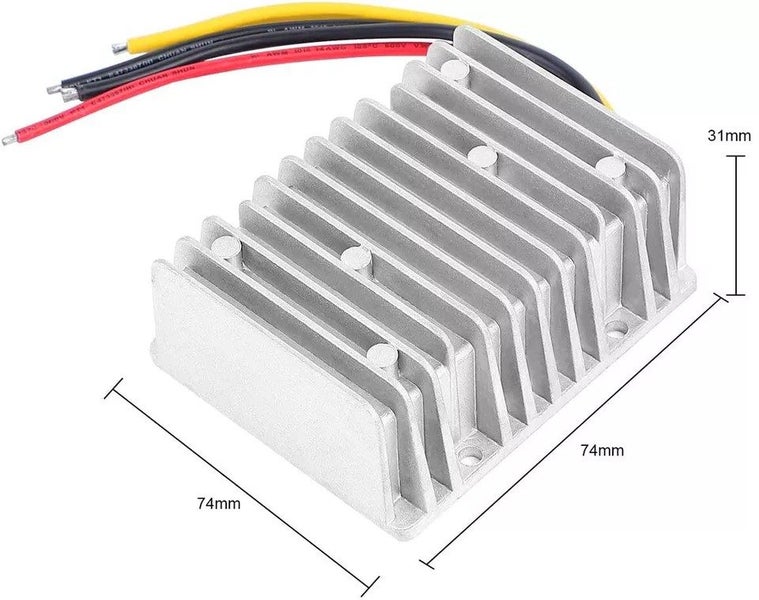

Compact Size
Compact aluminium shell with epoxy potting is anti-shock, damp-proof ,anti-dust protection and better heat dissipation
Intelligent Protection
Assembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection

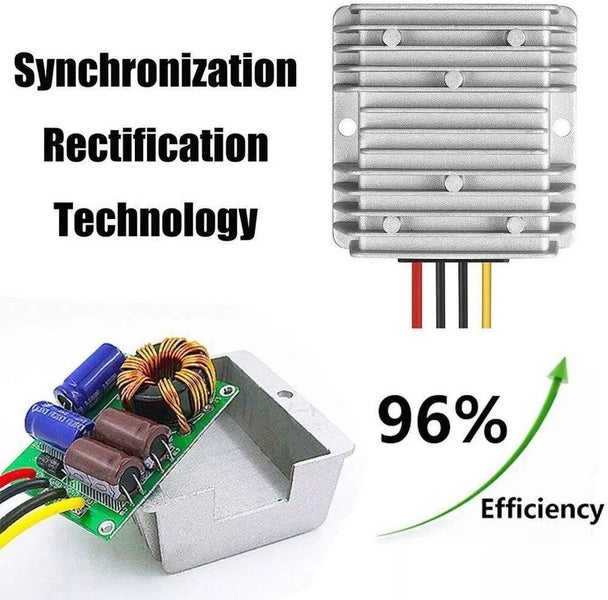

Synchronous Rectification Technology
The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency
SMT Process
FR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability.
Notes: It's normal that the case is hot when converter inside temp is over 113?, converter will protect itself when inside temp is over 185?.
Specification:
Non-Isolated Module
Input Voltage: 12V/24V/36V nominal, accept: 9V - 40V input range
No-load input current: =10mA
Output Voltage: DC 24V ±2% ; Output Current: 6A
Ripple Wave: 50Mv
Starting Delay time: = 2S
Efficiency: =95%
Operating Temperature:-40 ~ 80?
Weight: 350g
Package Include
1x DC Voltage Converter
1X Box
