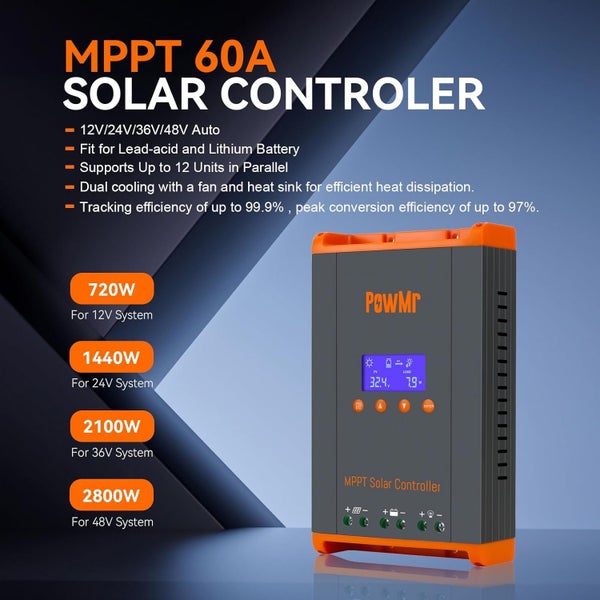

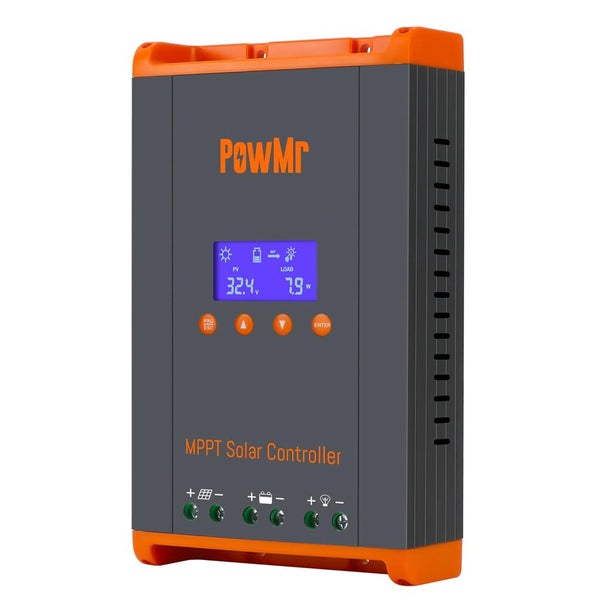

60A MPPT Solar Controller 12V/24V/36V/48V For AGM Gel Lifepo4 Lithium Battery

Feature:

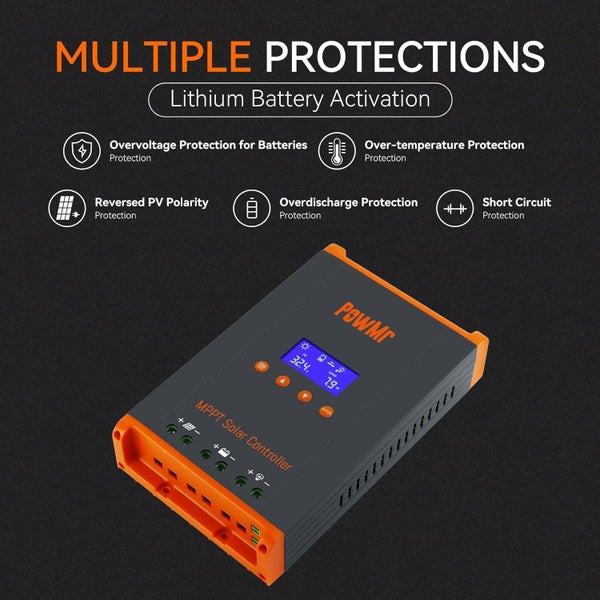

1.Integrated Charging Presets Integrated charging modes include adaptive charging logic, suitable for most battery types such as flooded lead-acid batteries, gel-sealed lead-acid batteries, and lithium batteries. 2.Versatile Application Compatible with 12V/24V/36V/48V system voltages. 3.Multi-Stage Charging Algorithm The multi-stage charging algorithm is designed to optimize each charging cycle. After thebatteries are fully charged, it maintains battery capacity by applying preset charging parametersin specific charging stages. 4. Supports Up to 12 Units in Parallel The parallel operation function allows for easy expansion of the solar panel configuration andenergy storage capacity limits, thus increasing the scale of energy storage. 5. Durable and Secure a,Photovoltaic input overcurrent b, Photovoltaic array short circuit c, Reversed photovoltaic polarity, Overvoltage protection for batteries, Overdischarge protection for batteries, Over-temperature protection 6.Forced Air Cooling Built-in cooling fan for forced heat dissipation, improving overall device operational efficiency. 7. Lithium Battery Activation Compatible with lithium batteries. when connected lithium batteries are in a protected state, the controller will activate the lithium batteries with the energy from the solar panels, with current not exceeding the lithium batteryprotection voltage and current range.

Specification:

Voltage range of battery: 12V systems:DC9VDC15V 24V systems:DC18VDC29V 36V systems:DC30VDC39V 48V systems:DC40VDC60V

Maximum Input Power: For 12V System :720W For 24V System:1440W For 36V System:2100W For 48V System:2800W Maximum Efficiency:=98. 1% Max. Solar Array Open-Circuit Voltage:160V Battery type:User default, Sealed, Flooded, GEL, LiFePO4 Operating Temperature:20°C-+55°C Working humidity:<95% No condensation Dimension (LxWxH) mm:215x130x85 Weight:1KG
