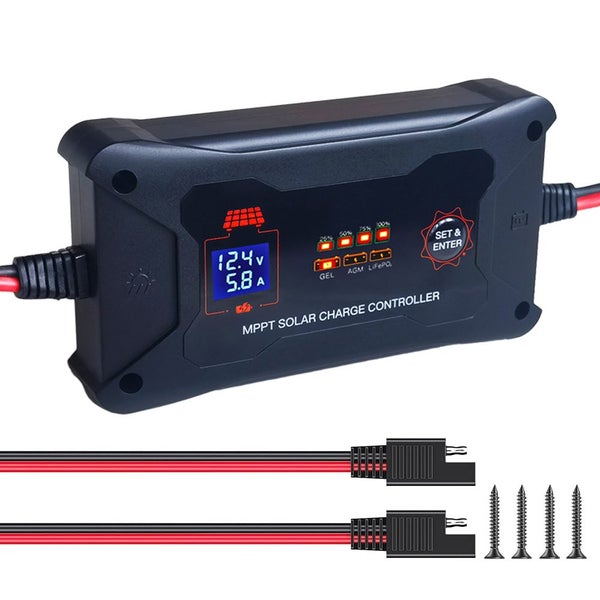

20A 12V/24V MPPT Solar Charge Controller AGM Lithium LiFePO4 Battery Regulator
Description
Feature:
100% Efficiently MPPT Charging---Latest upgraded 20A MPPT solar charge controller can automatically monitor the 12V 24VDC system voltage, and the tracking efficiency is up to 100%, which means it can charge your battery to the maximum, compared with other products, Can help you save 20% of the charging time.
Mini & Portable with LCD Display & LED Indicate Light-- -The controller is equipped with an LCD display and LED indicator light, which is convenient for you to monitor the working condition of the solar panel and battery.
Dsign for 12V 24V Battery---This controller is specially designed for 12V 24V battery, compatible with various 12V 24V batteries such as AGM, Gel, Deep Cycle, Sealed, Lead Acid, Flooded, and LiFePO4 lithium batteries.
High Security---The controller has a built-in protection system and intelligent 3-stage charging (Equalize, Float, Boost), which means that the solar energy can be used to the maximum extent, and it can also fully protect your battery (Over Charge Protection, Over Temperature Protection, Over Voltage Protection, Over Current Protection, Short Circuit Protection, Discharge Protection, Reserve Polarity Protection), it is safer to use.
Plug&Play---SAE connector quickly connects or disconnects, plug and play, convenient and practical. At the same time, the package contains two additional 130mm SAE Extension cables, which can be extended or DIY your solar system.
Excellent Waterproof Performance---This controller has good waterproof performance, so even if you use it outdoors, you don't have to worry about inclement weather making it unusable.
Parameter
No-load Loss: 20mA
Max Solar Input Voltage: <30Voc for 12V,60Voc for 24V
Rated Solar Charge Current: 20A
Max Solar Input Power: 300W/12V, 600W/24V
Operating Temperature: -20ºC~+45ºC
IP Protection: -40ºC~+80ºC
Net Weight: 350g
Operating Altitude: =3000 meters

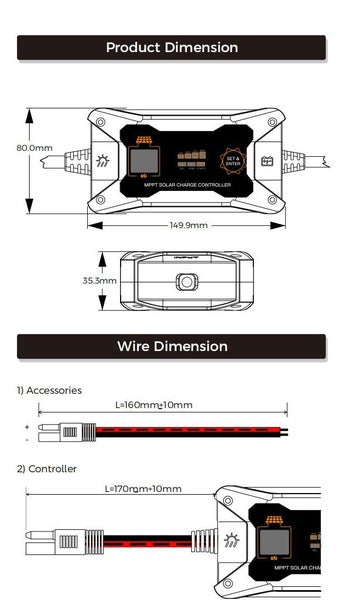

Controller Dimension(mm): 150x80x35
Package:
1x solar controller
1xSAE cable
1x user manul
