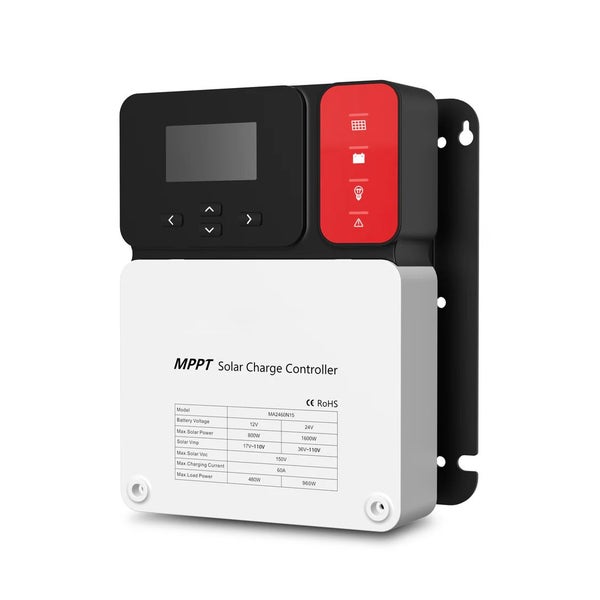

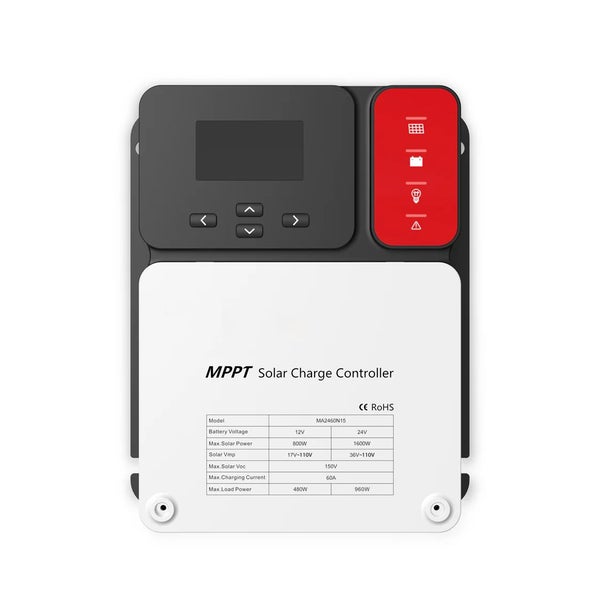

SRNE 12V 24V 60A MPPT Solar Charge Controller

SRNE 12V 24V 60A MPPT Solar Charge Controller

For off-grid application Supports connection to PV, battery, and load with multiple load operating modes to meet diverse needs User-Friendly Easy to install and simple to use, with natural cooling for absolutely silent operation. Safety Complete charge and discharge protection mechanism with high-quality components for stable operation All-in-One Supports multiple battery types and features a highly integrated design to save space and reduce wiring. Efficient MPPT with up to 99.9% efficiency, supporting 2 solar panels in series and more in parallel. Intelligent Supports TTL RS485 and CAN (RV-C protocol), as well as Bluetooth connectivity with a mobile app.

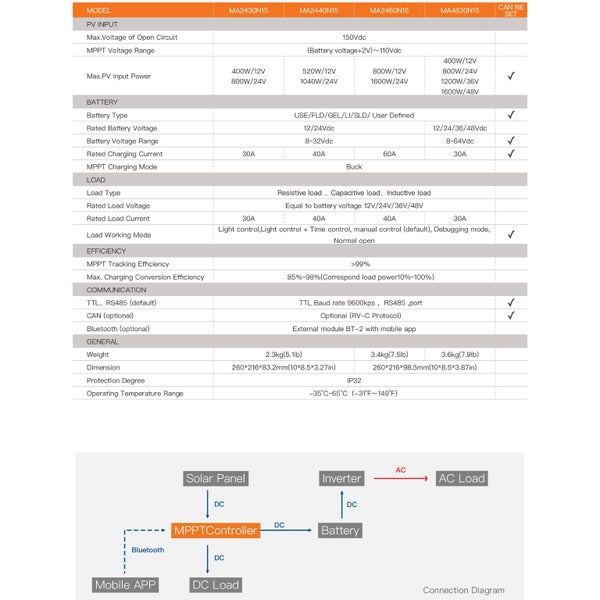

Max Voltage of Open Circuit:150Vdc MPPT Voltage Range :(Battery voltage+2V)110Vdc Max PV Input Power:800W/12V,1600W/24V Battery Type: USE/FLD/GEL/LI/SLD/ User Defined Rated Battery Voltage: 12/24Vdc Battery Voltage Range: 832Vdc Rated Charging Current: 60A MPPT Charging Mode: Buck Load Type: Resistive load ?Capacitive load? Inductive load Rated Load Voltage: Equal to battery voltage 12V/24V/36V/48V Rated Load Current: 40A Load Working Mode: Light control, Light control + Time control, manual control (default), Debugging mode, Normal open MPPT Tracking Efficiency: >99% Max Charging Conversion Efficiency:85%98%(Correspond load power10%100%) TTL?RS485 (default): TTL Baud rate 9600kps ,RS485 ,port CAN (optional): Optional (RV-C Protocol) Bluetooth (optional):External module BT-2 with mobile app Weight:3.4kg(7.5lb) Dimension: 26021698.5mm(108.53.87in) Protection Degree: IP32
