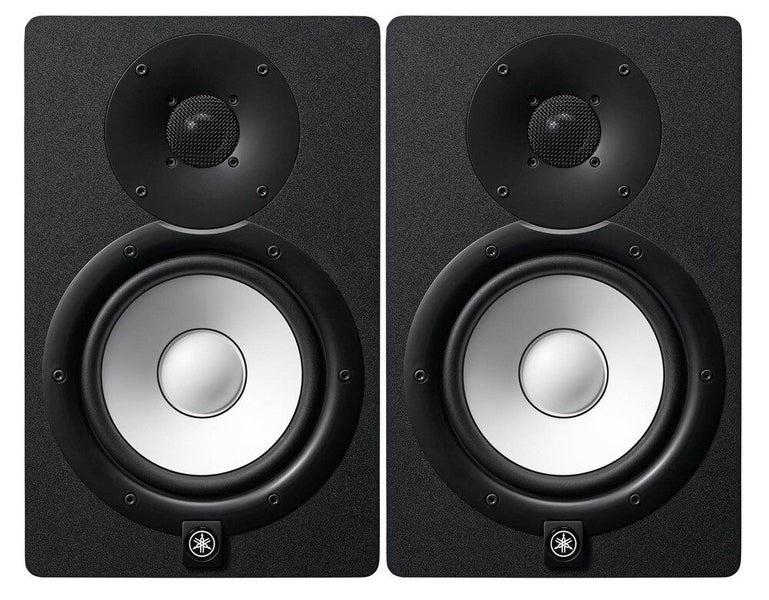

HS7 Powered Studio Monitor is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 95W of total output and features a 165 mm woofer and a 25 mm tweeter with waveguide that can produce frequencies up to 30kHz. The HS7 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups. Key Features

Low Resonance Enclosure Design HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitred-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound

Noise Reduction Technology Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamahas engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB

Specifications System Type 2-Way Bi-Amped Powered Studio Monitor Frequency Response 43 Hz to 30 kHz Crossover Frequency 2 kHz Transducer LF: 165 mm Cone HF: 25 mm Dome Output Power Total: 95W LF: 60W HF: 35W Input Sensitivity -10 dBu / 10 kO Inputs 1x Balanced XLR3-31 Type 1x 1/4" (6.35 mm) Balanced TRS Controls Level Control (+4 dB/Centre Click) AEQ: High Trim Switch (+/- 2 dB @ HF) Room Control Switch(0, -2, -4 dB under 500 Hz) Indicators 1x Power On White LED Power Consumption 55 W Enclosure Type: Bass-Reflex Material: MDF Dimensions (WxHxD) 210 x 332 x 284 mm Weight 8.2 kg
