Description
The CX23 is a 2-way stereo or 3-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.
2-way stereo, 3-way mono crossover 19" rack mountable Butterworth filters - 18dB/octave Continuously adjustable cutoff frequencies
40Hz ultra-low frequency cut Phase invert function Inputs and outputs via XLR
Power supply 230Vac selectable 50Hz (IEC) Input impedance: balanced 40k ohms Input impedance: unbalanced 20k ohms Output impedance 220 ohms Crossover ranges: stereo 50Hz-5kHz;750Hz-7.5kHz Crossover ranges: mono 50Hz-5kHz;750Hz-7.5kHz; 2kHz-20kHz Filter slope 18dB/octave Frequency response 20Hz-25kHz +0/-1dB Signal to noise ratio >90dB THD 0.006% Dimensions 482 x 44 x 170mm Weight 2.5Kg
We have two stores in Auckland and welcome pickups
To find us click the view store link at the bottom of the listing
https://www.trademe.co.nz/stores/sound-division/contact-us
Albany, North Shore Henderson, West Auckland
Why buy from us:
- All stock in NZ ready to ship
- 39 years in business
- Best shipping costs (no inflated rates to hide the real cost)
- Very fast delivery
- We are sound and light experts with 2 retail locations where we welcome pick ups
- We are a GST registered business and offer a warranty & GST receipt with every sale.
Details
Shipping & pick-up options
| Destination & description | Price | |
|---|---|---|
| Auckland 2-3 days, Standard | $9.00 | |
| Waikato 2-3 days, Standard | $11.00 | |
| North Island 2-3 days, Standard | $11.00 | |
| South Island 3-4 days, Economy | $14.00 | |
| Auckland 4-7 days, Rural Standard | $14.00 | |
| Waikato 4-7 days, Rural Standard | $16.00 | |
| North Island 4-7 days, Rural Standard | $17.00 | |
| South Island 5-8 days, Rural Economy | $19.00 | |
| Pick-up available from Albany, Auckland | Free | |
Estimated delivery times in business days
Payment Options
Pay instantly by card and Ping balance.
Four fortnightly interest-free payments.
Questions & Answers (2)
Both of our Auckland stores are open for in store shopping. We welcome pick ups in store, click the view store link at the bottom of all our listings to see our contact details. Seller comment Saturday, 15 August 2026 All products are in stock in Auckland ready to ship. We will combine shipping, please ask. We endeavor ship the same day as payment is received. Allow 1-2 Days Auckland, 2-3 Days for North island and 2-5 Days for South Island. Seller comment Saturday, 15 August 2026

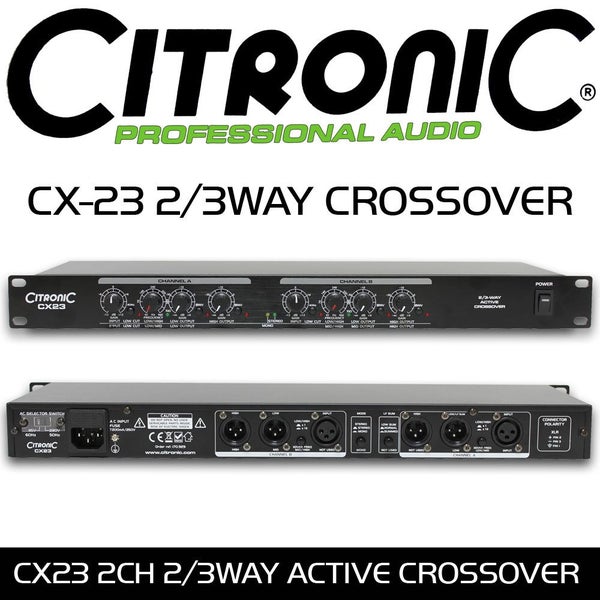

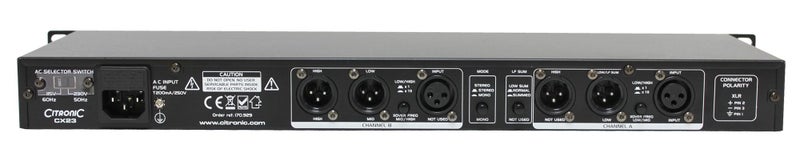

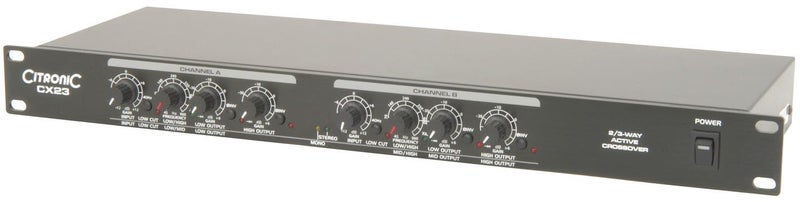

Active Stereo Crossover - 2 / 3 Way - Citronic
