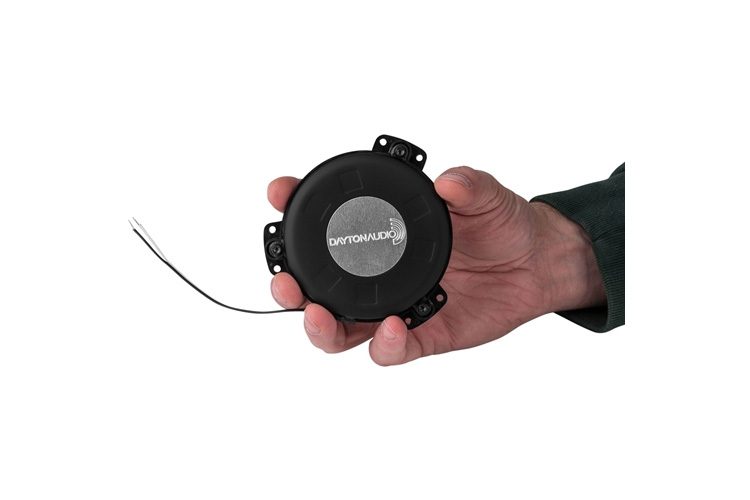

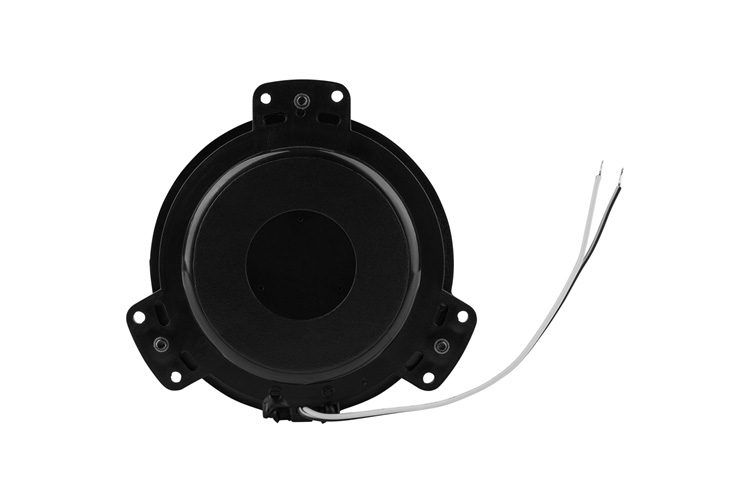

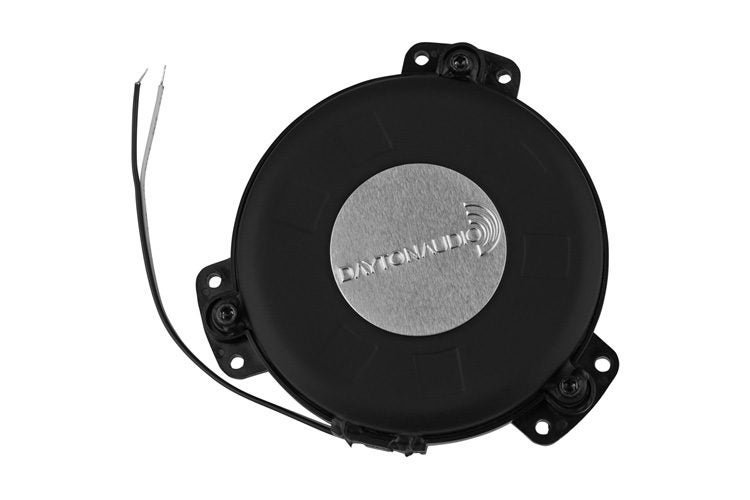

PUCK Tactile Transducer Mini Bass Shaker The Dayton Audio TT25-16 “PUCK” is a compact 16-ohm tactile transducer designed to deliver bass you can feel in home theater, gaming, and auto-sound applications. Measuring just 3.5? in diameter, it mounts easily to seats or surfaces to transfer low-frequency vibrations directly to the listener.

Features: Mini Bass Shaker: Transfers low-frequency sound vibrations to surfaces, letting you feel the bass. Compact Size: Hockey-puck form factor (3.5? × 1?) fits tight spaces and unobtrusive installs. Versatile Applications: Perfect for home theater seating, simulators, gaming chairs, and vehicles. Flexible Wiring: Four units can be wired for stereo 8-ohm (L/R) or 4-ohm mono operation. Durable Build: Quality construction with 4-layer voice coil and 1? aluminum former. Model: TT25-16 PUCK Type: Tactile Transducer / Mini Bass Shaker Power Handling: 15 W RMS / 30 W max Impedance: 16 O DC Resistance (Re): 14.9 O Voice Coil: 25 mm diameter, 4-layer, aluminum former Voice Coil Inductance (Le): 2.93 mH @ 1 kHz Resonant Frequency (Fs): 40 Hz Frequency Response: 20 – 80 Hz usable range Force Peak: ~30 lbs/ft (when using 4 units together) Dimensions: 85.7 mm (3.5?) diameter × 25.4 mm (1?) depth Baffle Cutout: 70 mm with 25 mm slot for wire pass-through Weight: ~0.75 lbs (shipping) Warranty: 5 years (parts and labor) Included: Unit only (requires #6 screws for mounting; optional SMRK mounting kit available)
