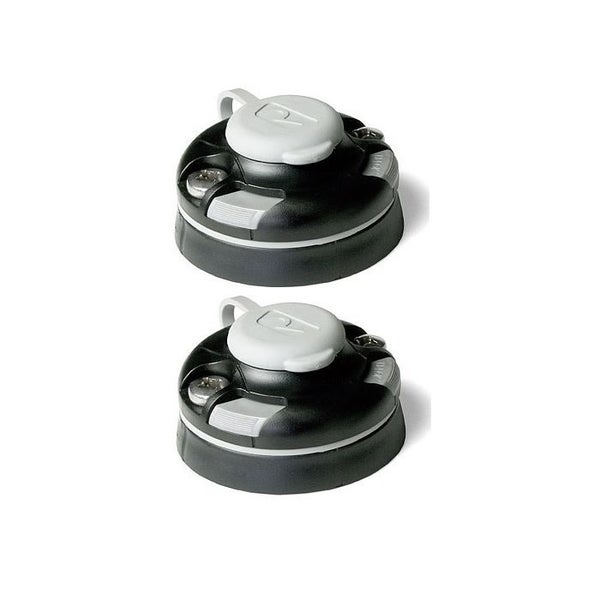

RAILBLAZA StarPorts™ are modeled on the existing winch handle receivers on most top brand sailboat winches, and can be surface or recess-mounted on any sail or power boat, kayak, utility vehicle or ATV. Low profile surface mount and minimal intrusion depth when recess mounting. Each StarPort™ includes a stylish locking slide for securing accessories firmly in place. Gasket and bung reduces water ingress.

What You Get:

2 x StarPorts 2 x surface mount adapter rings, 2 x weather-tight bungs, 4 x 32 mm x 10-gauge self-tapping screws, 4 x (6 x 32 mm) bolts, washers & nuts.

Installation:

The StarPort™ can be mounted on the surface using the surface mount collar supplied or it can be recessed into any horizontal or vertical surface. Ensure you have adequate clearance behind the surface for screw and/or bolt penetration, and that no cabling, plumbing or rigging will be adversely affected. We recommend the use of a silicone-based sealant between the collar and the deck. Surface/ Recess Mount Drill holes using the template supplied.

1. Surface Mount: Stack collar, gasket and StarPort™ in place, then fit bolts or screws.
2. Recess Mount: Fit gasket and StarPort™ in place, then fit bolts or screws. Tighten nuts or screwheads to a firm tension.
