Description

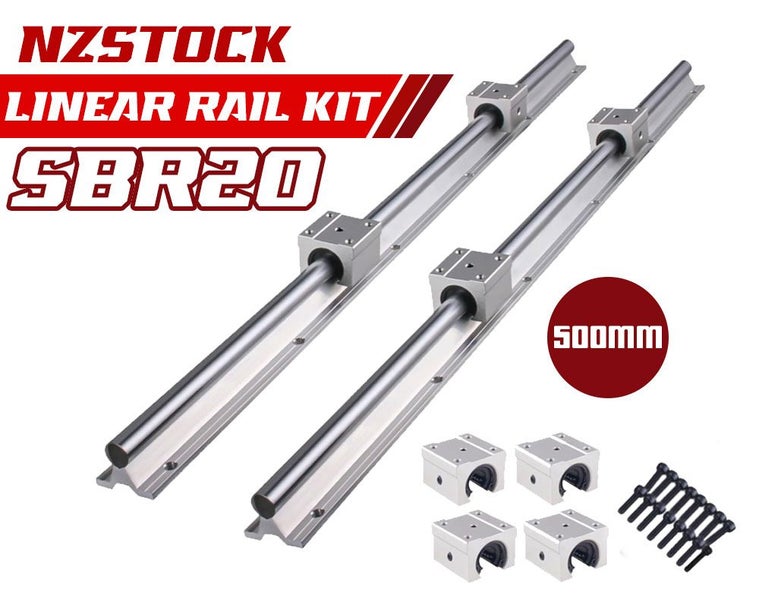

500mm High Precision Linear Guide Rail Set SBR20 20mm Shaft, 2 Rails 4 Blocks, 860N Dynamic Load, M6 Mounting Holes for CNC Router and Automated Equipment

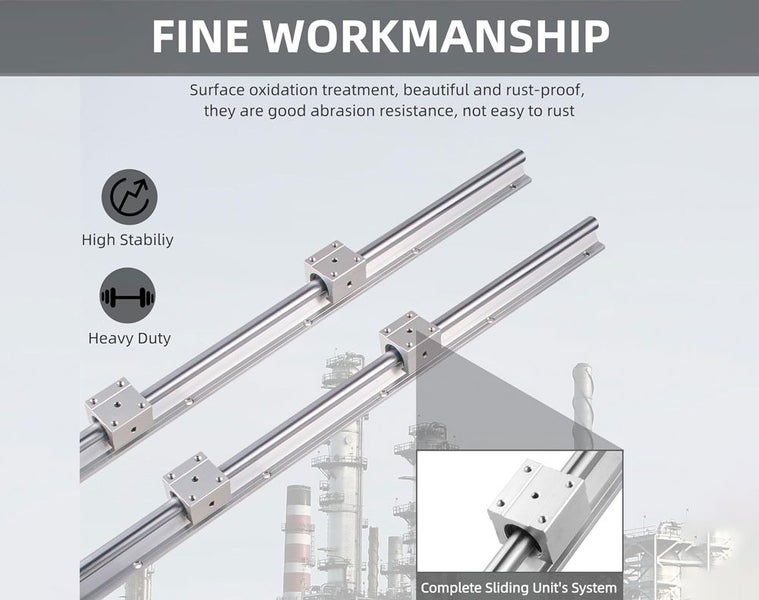

Upgrade your linear motion system with this durable, high-precision 500mm Linear Guide Rail Set (Model SBR20). Features a 20mm hardened shaft and 4 SBR20UU bearing blocks, each rated for a 860N Dynamic Load and 1370N Static Load. The aluminum alloy rails feature high heat resistance, anti-oxidant, and dust-proof construction. Ideal for CNC machinery, robotics, and automation equipment requiring smooth, accurate movement.
Features: ¯¯¯¯¯¯¯¯
- High precision and accuracy in linear motion systems
- Heavy Load Capacity: 860N Dynamic / 1370N Static per block
- Anti-oxidant, Corrosion Resistance, and Dust Proof construction
- Made of high-quality Aluminum Alloy and high-frequency heat-treated carbon steel shaft
- 20mm Shaft Diameter
- M6 screw interface for secure mounting
- Low maintenance and easy to install
Specifications: ¯¯¯¯¯¯¯¯¯¯¯¯¯
- Linear Guide Rail 500mm
- Warranty Period: 100 DAYS
- Material: Aluminum Alloy (Support) & Carbon Steel (Shaft)
- Model: SBR20
- Block Model: SBR20UU
- Shaft Diameter: 2cm
- Shaft Length: 50cm
- Dynamic Load (Per Block): 860N
- Static Load (Per Block): 1370N
- Sliding Coefficient (kgf): 0.20
- Orbital Coefficient (kgf): 3.50
- Screw Interface (Mounting Holes): M6
- Shaft Height (H): 2.7cm
- Block Size (L x W x H): 4 x 4 x 3.8cm
- Weight (Approx.): 1.5kg
- Color: Silver (As shown)
Package Contents: ¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
2 * Linear Slide Rail 4 * Bearing Slider Block 1 * Pack of Mounting Screws
Note: ¯¯¯¯
- Ask About Combine Shipping of different items
- Auckland Stock
