Description

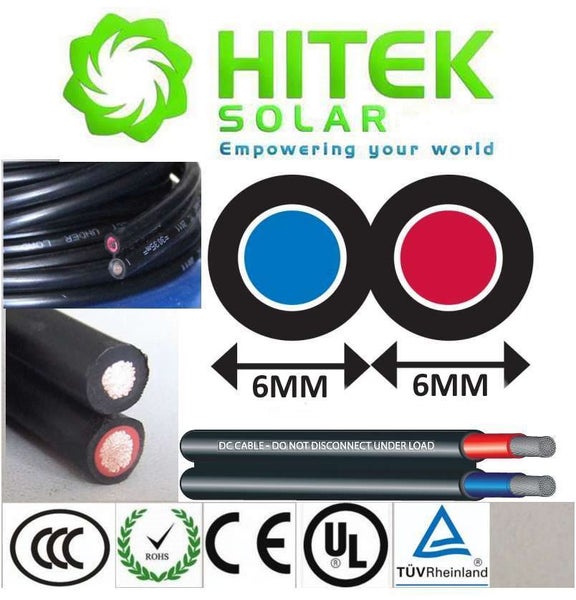

1m New TWIN Core 6mm2 High Quality BLACK Solar Panel PV (PV1-F) DC Round Flex Cable, BLACK, Approved for NZ / Australia.
Note: This listing is for 1m of twin core 6mm cable, if you were wanting 20m, 30,m, 40m or even 100m of this cable please let me know as we can supply this also.
If you want Twin 4mm2 Solar PV Cable, please see our other listings.
PV1-F cable is used for photovoltaic systems. This cable links photovoltaic panels to the inverter. It is used for fixed installation outdoors or indoors.
Ideal for complete systems Grid Tie or Off Grid Power, or even a few panels on your motor home, RV, cabin, container home, etc.
Rated current: 70A
Info: TUV approved Dual wall insulation,electron beam cross-linked Excellent resistance to UV,water,ozone,fluids,salt,general weathering Excellent resistance to abrasion Excellent flexibility & stripping performance
Specs: *Size: 2 x 6mm2 *Conductor: Flexible tinned copper Class 5 (IEC 60228) *Insulation: Halogen Free Polyolefin *Outer Sheath: Black Halogen free polyolefin, flame retardant, low toxicity *Conductor flexibility: Flexi class 5 *Halogen free: IEC 60754-1 *Rated Voltage Uo/U (Um): 0.6/1 kV - 1000VDC *Operating temperature, range: -40 to 90°C *Gases corrosivity: IEC 60754-2 *Smoke density: EN/IEC 61034-2 *Flame retardant: IEC 60332-1 *Fire retardant : C1, NF C 32-070
Physical properties: *Temperature range:-40~+120degC *Design lifetime:25years for outside *Smallest possible bend radius:4x outer diameter
Heavy Duty DC cable sizes we can supply: 6mm 10mm 16mm 25mm 35mm 50mm 70mm 95mm 120mm
Can supply Quality Heavy Duty Copper DC cables for Off-Grid Solar / Battery Eneregy Storage & more via order.
NO Pickup for this item sorry. We are located in Bayfair Mt Maunganui, Tauranga, Te Puke, Papamoa, BOP etc.
For Free EXPERT Solar Power advice please see our Solar Services listing on here or lookup Hitek Solar NZ.
