Description
Summary

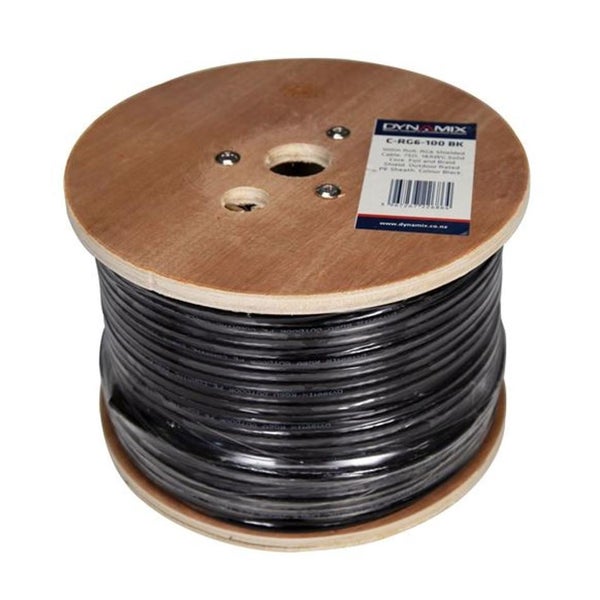

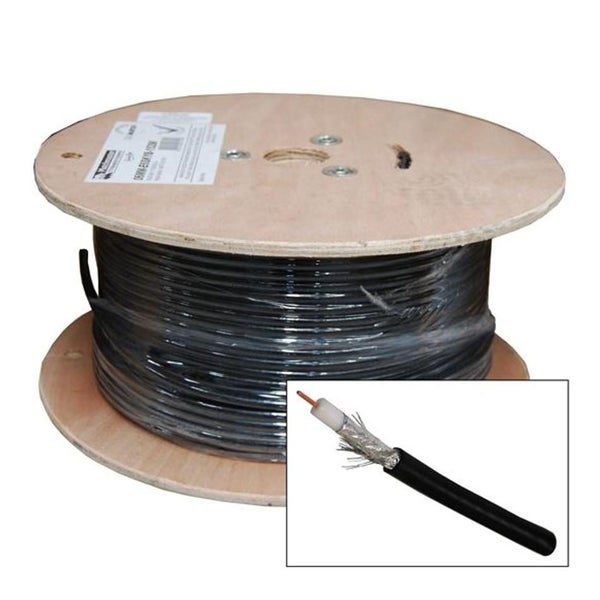

DYNAMIX 100m Roll RG6 Shielded Cable in black with 75 ohm impedance and 18AWG solid core. It features foil and braid shielding and is suitable for CATV/MATV, Broadband, HDTV, and Satellite Broadcasting Transmission applications.
Features
- 18AWG solid copper covered steel conductor
- Foam PE insulation
- Bonded aluminum foil shield with 100% coverage
- Aluminum wire braiding with 40% coverage
- PVC sheath in black color
- Suitable for various broadcasting and broadband uses
Specifications
- Conductor Material: Copper Covered Steel
- Conductor Size: 18AWG (1/1.02mm)
- Construction: Solid
- Insulation Material: Foam PE
- Insulation Nominal O.D: 4.57mm
- Shielding: Bonded Aluminum Foil, 100% Coverage
- Braiding Material: Aluminum Wire, 40% Coverage
- Sheath Material: PVC
- Sheath Nominal O.D: 6.7mm
- Color: Black
- Minimum Bend Radius: 67mm
- Operating Temperature: -15oC to 70oC
- Nominal Conductor DC Resistance @20oC: 100Ohm/km
- Minimum Insulation Resistance: 1000MOhm.km
- Voltage Test Core to Shielding: 1000V a.c/1min
- Nominal Characteristic Impedance: 753Ohm
- Nominal Capacitance: 532pF/m
