Description
Summary

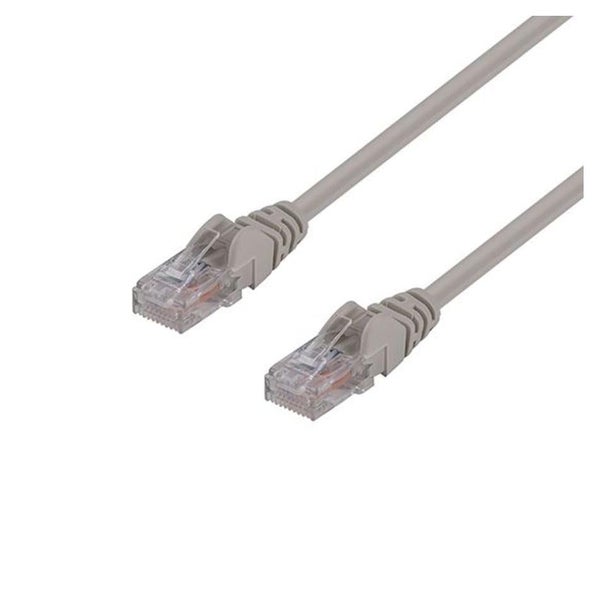

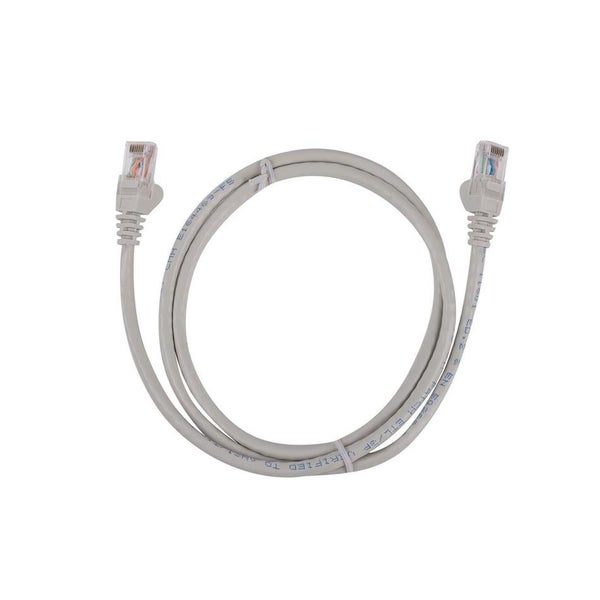

DYNAMIX 0.3m Cat6 Beige UTP Patch Lead (T568A Specification) with 250MHz bandwidth and 24AWG stranded conductors. It features slimline snagless moulding and unshielded gold-plated RJ45 connectors. The patch lead conforms to the ANSI/TIA-568.2 specification and is wired to the T568A pin-out. Suitable for Ethernet 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 1000BASE-Tx, peer-to-peer, telephony, home automation, and long-distance video transfer technologies like HDMI over Ethernet.
Produced by an ISO9001 and ISO14001 certified manufacturer, these leads are 100% tested and performance verified by third parties. They are UL Listed and covered by a lifetime warranty. Operating temperature range is -20oC to 60oC.
Features
- Conforms to ANSI/TIA-568.2-D Category 6 specification
- Wired to T568A pin-out standard
- 24AWG stranded UTP conductors for flexibility
- Bandwidth rating up to 250MHz
- Compatible with Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-Tx
- Supports 100VG (Voice Grade), Any LAN (IEEE802.12), 155/622 Mbps ATM
- Suitable for broadband video, voice, ISDN
- RJ45 (8P8C) plug with 50 micro inch gold-plated connectors
- Slimline snagless PVC moulded boots
- Available in 10 colours
- Produced by ISO9001 and ISO14001 certified manufacturer
- 100% tested and performance verified by third party
- UL/cUL Listed
- Covered by a lifetime warranty
- Operating temperature range: -20oC to 60oC
Specifications
- Length: 0.3m
- Conductor: 24AWG stranded UTP
- Bandwidth: 250MHz
- Connector type: RJ45 (8P8C)
- Connector plating: 50 micro inch gold plate
- Jacket material: PVC
- Colour: Beige
- Wiring standard: T568A
- Certification: ANSI/TIA-568.2-D, UL/cUL Listed
- Manufacturer certifications: ISO9001, ISO14001
- Operating temperature: -20oC to 60oC
Notes
- P....
