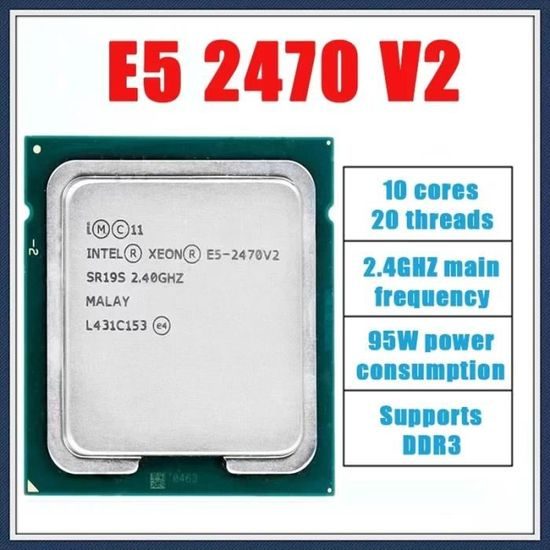

Intel® Xeon® Processor E5-2470 v2 (25M Cache- 2.40 GHz)

Essentials Product Collection Intel® Xeon® Processor E5 v2 Family Code Name Products formerly Ivy Bridge EN Vertical Segment Server Processor Number E5-2470V2 Lithography 22 nm Recommended Customer Price $1,440.00

CPU Specifications Total Cores 10 Total Threads 20 Max Turbo Frequency 3.20 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.20 GHz Processor Base Frequency 2.40 GHz Cache 25 MB Intel® Smart Cache Bus Speed 8 GT/s

of QPI Links 1

TDP 95 W

Supplemental Information Marketing Status Discontinued Launch Date Q1'14 Supply Status Discontinued Servicing Status End of Servicing Lifetime End of Servicing Updates Date Tuesday | June 30 | 2020 Embedded Options Available No Datasheet View now

Memory Specifications Max Memory Size (dependent on memory type) 384 GB Memory Types DDR3 800/1066/1333/1600 Max # of Memory Channels 3 Max Memory Bandwidth 38.4 GB/s Physical Address Extensions 46-bit ECC Memory Supported ‡ Yes

Expansion Options Scalability 2S Only PCI Express Revision 3 PCI Express Configurations ‡ x4 | x8 | x16 Max # of PCI Express Lanes 24

Package Specifications Sockets Supported FCLGA1356 Max CPU Configuration 2 TCASE 80°C Package Size 45mm x 42.5mm

Advanced Technologies Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® AVX Idle States Yes Enhanced Intel SpeedStep® Technology Yes Intel® Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Identity Protection Technology ‡ No
