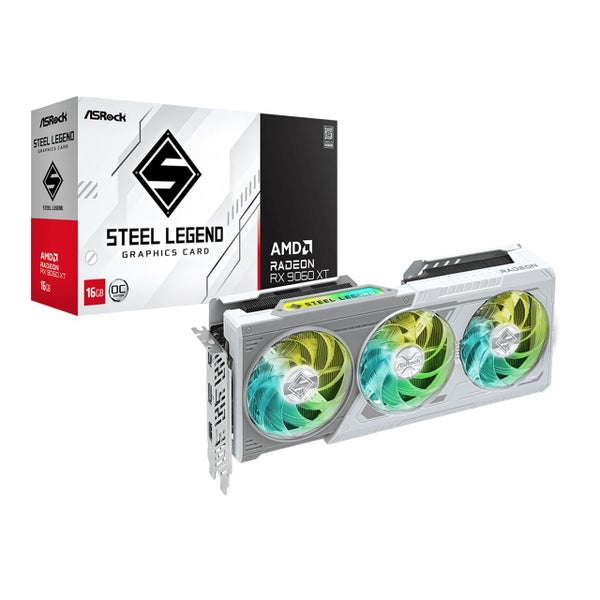

Features AMD Radeon™ RX 9060 XT Steel Legend 16GB OC Clock: GPU / Memory Boost Clock*: Up to 3320 MHz / 20 Gbps Game Clock**: 2780 MHz / 20 Gbps

Key Specification AMD Radeon™ RX 9060 XT GPU 16GB GDDR6 on 128-Bit Memory Bus AMD RDNA™ 4 Architecture 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) Microsoft® DirectX® 12 Ultimate PCI® Express 5.0 Support 1 x 8-pin Power Connector 2 x DisplayPort™ 2.1a, 1 x HDMI™ 2.1b

Key Features Polychrome SYNC Triple Fan Design Striped Ring Fan Stylish Metal Backplate Ultra-fit Heatpipe Air Deflecting Fin 0dB Silent Cooling Super Alloy Graphics Card

Polychrome SYNC - Create your own unique colorful light effects. With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

Specifications Graphics Engine

AMD Radeon™ RX 9060 XT

Bus Standard

PCI® Express 5.0 x16

DirectX

12 Ultimate

OpenGL

4.6

Memory

16GB GDDR6

Engine Clock

Boost Clock*: Up to 3320 MHz Game Clock**: 2780 MHz

*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

2048

Memory Clock

20 Gbps

Memory Interface

128-bit

Resolution

Digital Max Resolution: 7680 x 4320

Interface

2x DisplayPort 2.1a 1x HDMI 2.1b

HDCP

Yes

Multi-view

3

Recommended PSU

550W

Power Connector

1x 8-pin

Accessories

1x Quick Installation Guide

Dimensions

298 x 131 x 51 mm, 2.55-slot

Net Weight

967 g
