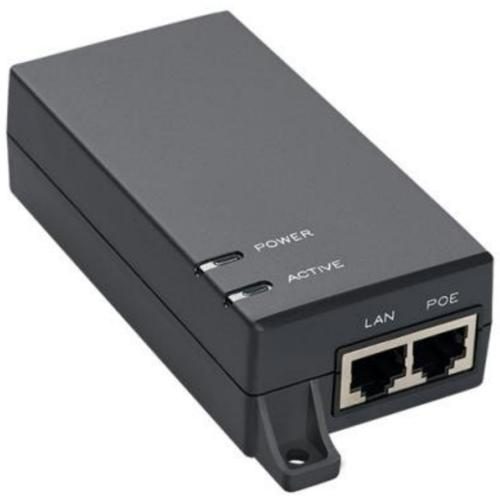

Go Wireless PT-PSE100G 48V DC 30 Watt Gigabit Passive Power over Ethernet Supply

The PT-PSE100G PoE Injector is a single port PoE Injector that is compatible with IEEE 802.at standard. Recently upgraded to a smaller form factor but still comes with the industry leading PoE technology that enables 30W of PoE over standard Cat5 or better cables to easily upgrade IP surveillance devices, WLAN APs and other Ethernet devices. Dimensions

Product Working Diagram

Standards IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, Support terminal equipment with IEEE802.3af/at, RoHS Compliance, WEEE Compliance Input 100-240Vac 1.0A 50/60Hz Output 48Vdc 630mA Power Pins 4/5(+), 7/8(-) Data Speed 10/100/1000Mbps Operating Temperature 0°C to 40°C Operating Humidity 20% to 80%, non-condensation Storage Temperature -20°C to 70°C Storage Humidity 10% to 90%, non-condensation Operating Altitude Up to 2000meters AC Surge Protection 1.0KV (5P/5N), L-N 1.2/50 (8/20) Tr/Th us, 2.0KV (5P/5N), L-PE 1.2/50 (8/20) Tr/Th us, N -PE Case Plastic Colour Black Mounting Wall-mounted IP Rated IP40 Dimensions 134mm X 56mm X 33mm Weight 175g Safety Approvals CE, FCC EMI FCC CFR47 Part 15, EN55024, EN55032 EMS IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz80MHz) Immunity IEC60068-2-6(Vibration), IEC60068-2-27(Impact), IEC60068-2-32(Free Fall) LED Indicator Power Indicator: Green, PoE Load Indicator: Green
