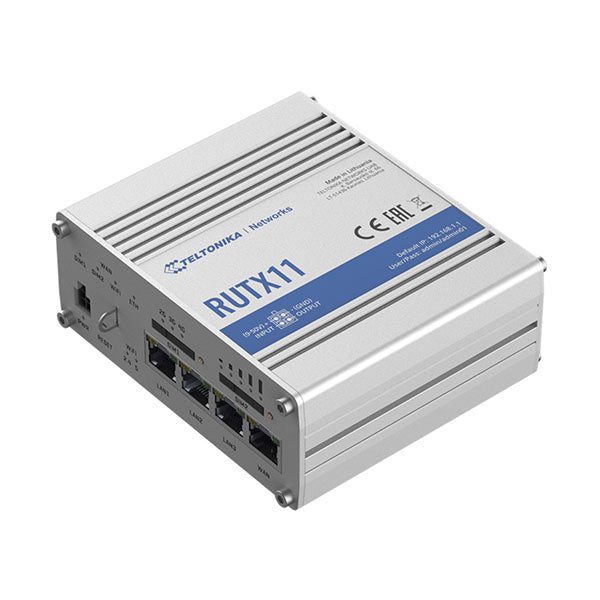

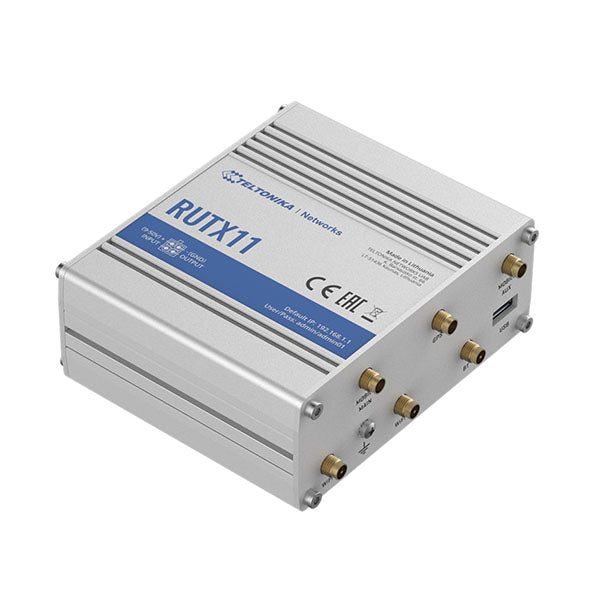

TELTONIKA INSTANT RELIABLE AND SECURE CAT6 DUAL SIM 4G LTE ROUTER

It is a very powerful device equipped with Dual-SIM with auto Failover, Backup WAN, and other SW features.

A wide range of internal hardware interfaces allows this product to be used in power-hungry industrial applications where speed and robustness are at the heart of the solution.

4G LTE - Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows for a seamless data transfer experience with auto-failover and a backup WAN.

Bluetooth LE allows sensors to be connected directly to the router, thus minimizing the overall solution ecosystem.

SPECIFICATIONS

HARDWARE

Mobile: 4G/LTE (Cat 6), 3G

CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz

Memory: 256 MBytes Flash, 256 MBytes RAM

Powering option: 4pin power socket, 9-50 VDC

SIM: 2 x External SIM holders (2FF)

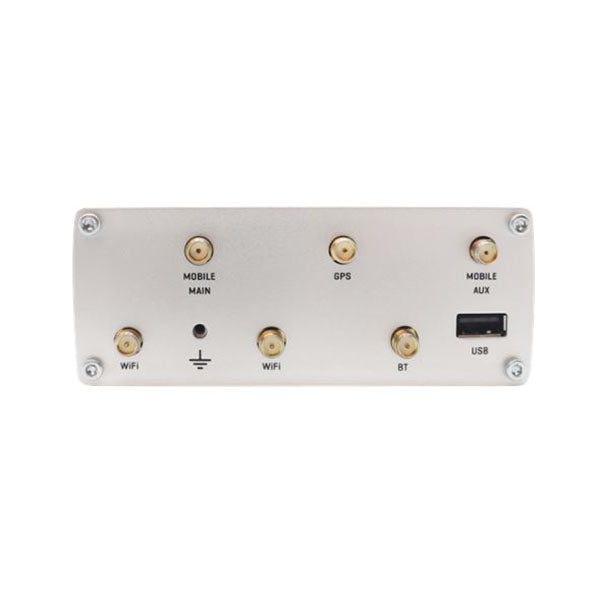

Antenna connectors: 2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS

Ethernet: 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN

WiFi: IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)

GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS

Bluetooth: 4.0 (Low energy)

Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output

Other: 1 x USB host

Status LEDs : 4 x WAN type, 2 x Connection type, 5 x Signal strength, 2 x WiFi, 8 x Ethernet, 1 x Power

Operating temperature: -40 oC to 75 oC

Housing: Aluminium housing with DIN rail mounting option and grounding capability

Dimensions (W x H x D): 115 x 44 x 95 mm

Weight: 456 g

SOFTWARE

Operating system: RutOS (OpenWrt based Linux OS)

Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits

Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules

Network: Failover (Network backup), VLAN, QoS, Load Balancing

VPN ...
