Description:

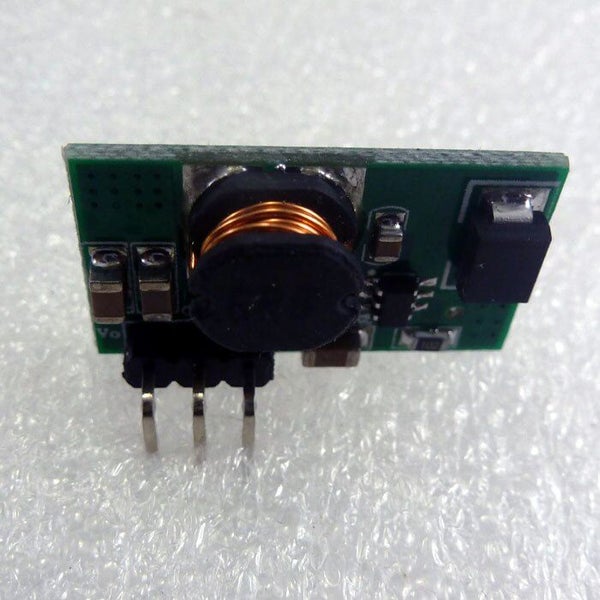

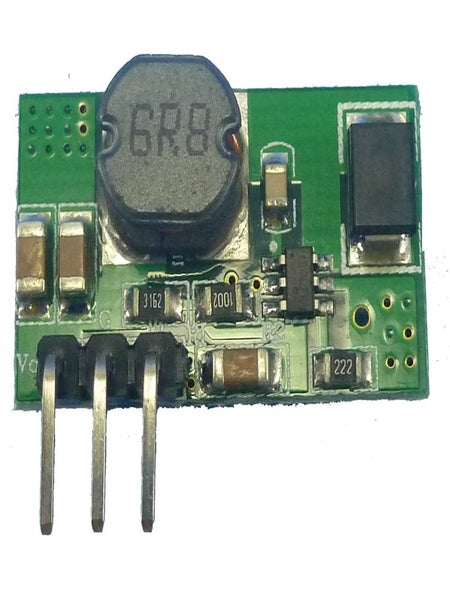

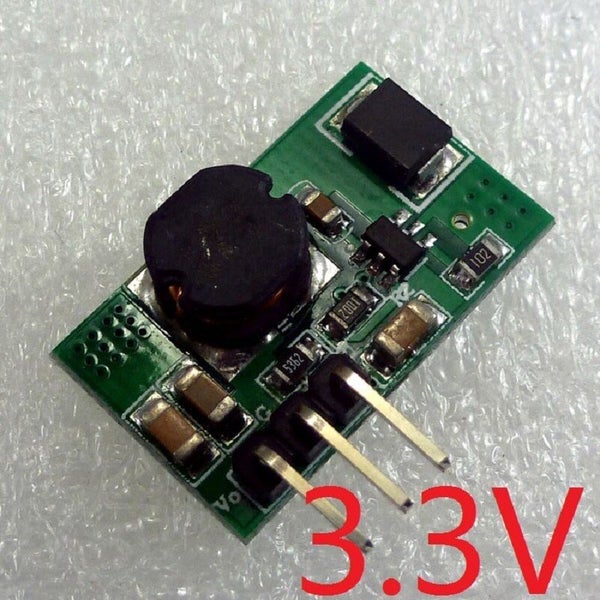

Input voltage 4.75~23V,output 3.3V Maximum output current 1.2A,Short time maximum output current 2A DC-DC Step-Down Converter module working frequency 1.4MHz. efficiency is 78-92% . 2.54mm pin pitch, Arduiuo Breadboard MCU Development Board friendly Excluding Pin Size 22.5mm x 13.5mm x 6.5mm(small) Weight : about 2.2g(Very light)

Applications: MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc 3.3V LED Lighting 3.3V Motor esp8266 Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee Smart home / home automation 315M 433M Wireless remote controller Distributed Power Systems Battery Charger Pre-Regulator for Linear Regulators DSL Modems Attention : This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself

Packing list: 1 PCS mini 1.2A DC DC Converter Step Down 4.75V-23V to 3.3V Estimated delivery timeLsAbout 10 business days.We will use standard shipment for the orders. Normally it may need about 10 days, but sometimes please note: Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.
