Description
Price reduced BULK shipment arrives....

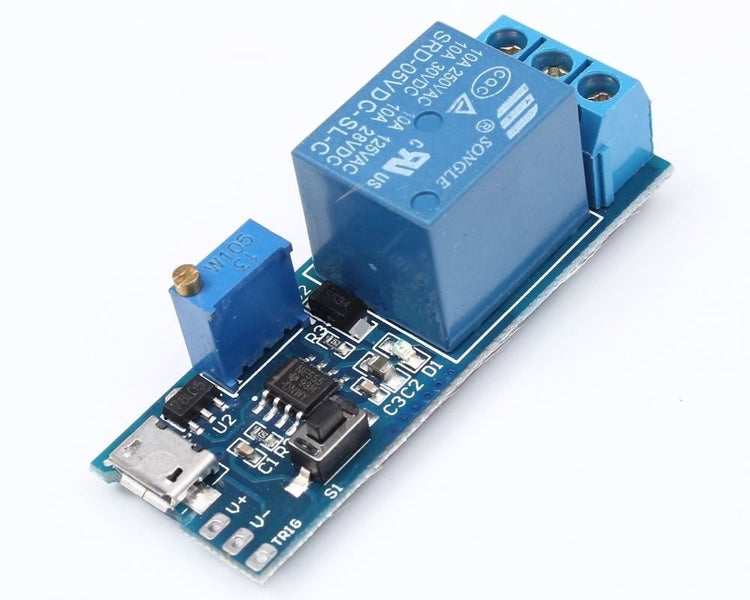

Handy countdown timer module with a multitude of uses. Will time from 0.1 secs to 22 seconds, easily adjusted with multiturn potentiometer.
Module Properties: NE555 chip
Input voltage: DC 12V
Dimension: 77mm (L) x 23mm (W) x 18mm (H) mm
Control voltage: AC 0250V / max. 10A, DC 030V / max. 10A
Max. loading: 2200W
The output can be connected to AC 250V 10A resistive or DC 30V 10A load.
There is an onboard "power" LED and a "output status" LED

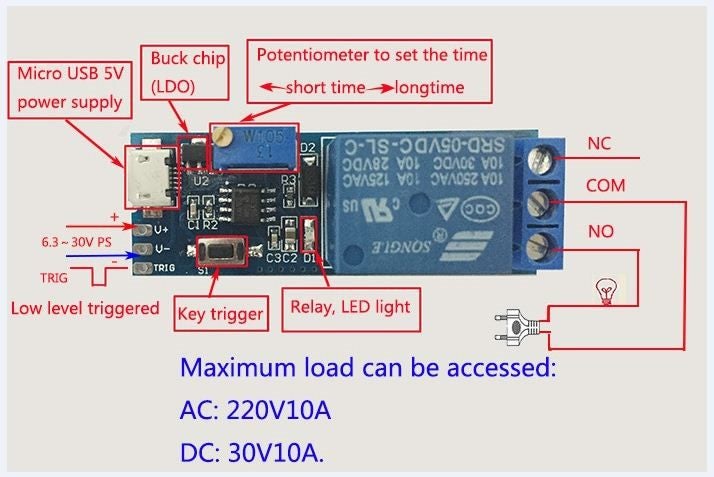

PCB may be red or blue Power input to board is labelled VCC (+12v) and GND terminals relay contact outputs (clean contact) CB - com = normally closed contacts, CK - com = normally open contacts. apply power and once timed out relay toggles . recycle power to reset
We dont mark up on shipping so be assured of the best deal possible, LOWEST prices on product and shipping, combined shipping welcome ! Just pay the highest courier charge of any item and the rest travel for free, any amount! We use CourierPost and deliver to PO boxes All goods located in NZ All goods come with 12 month RTB warranty Thanks
Details
Shipping & pick-up options
| Destination & description | Price | |
|---|---|---|
| Nationwide 2-3 days, Standard | $7.20 | |
| Nationwide 4-7 days, Rural Standard | $9.40 | |
| Combine with another item you've paid shipping on | $0.00 | |
| Pick-up available from Whanganui, Whanganui | Free | |
Estimated delivery times in business days
Payment Options
Pay instantly by card and Ping balance.
Cash
Questions & Answers (1)
Still contactable on our free phone 0800 723 367 Local pickup after phone call only All goods located in NZ Seller comment Saturday, 28 February 2026
5-30V delay timer 0-22 sec switch relay micro USB YE6
