Description
This is a multivariant auction - please select carefully

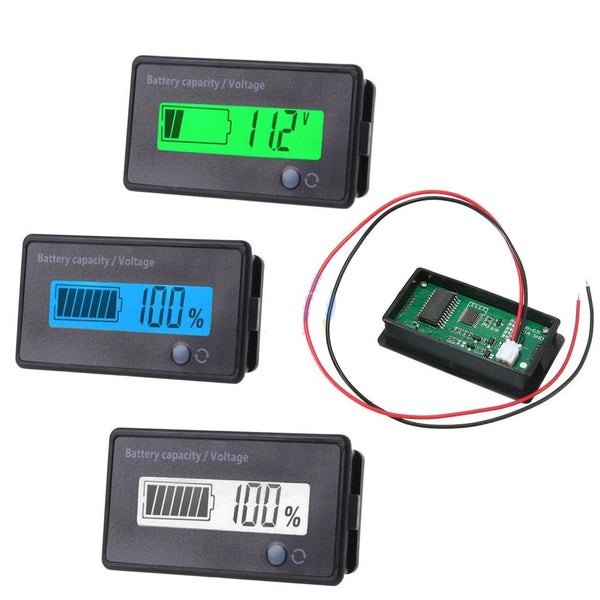

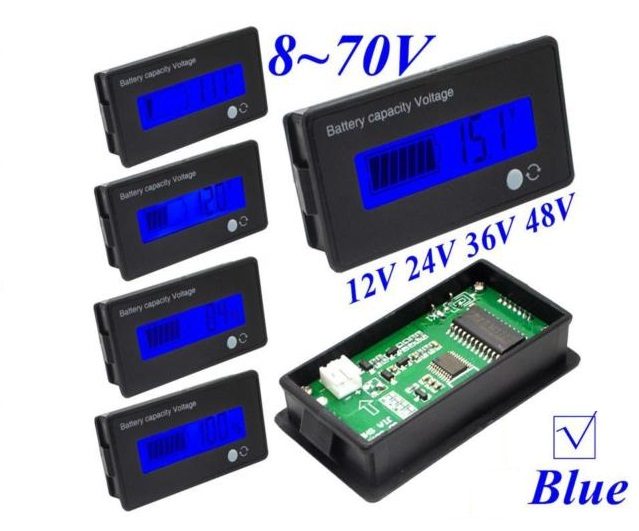

A versatile backlit LCD Battery capacity and voltage indicator for 12V 24v 36 and 48 Volt battery arrays as well as configurable for Lithium Polymer stacks. Can do up to 16 LiPo cells in series. Configurable by the front panel switch, set to the bank voltage 12/24/36/48 for lead acid or set the number of LiPo cells and it will display the voltage and or the percentage capacity in your battery. 0-100% Once set configuration is held in non-volatile memory and is retained. Backlight on-off switch. Crystal shell LCD monitor power! Applicable battery chemistry; Lithium Batteries,Lead Acid Batteries Working Current: 5-15 mA (with backlight on) Supply Voltage: 6-85V Energy Resolution:1% increments Voltmeter Accuracy:1% Usable Temperature Range: -20- 70 degrees Operating humidity:10-80%(non-condensing) Black wire connects to negative terminal Red wire connects to positive terminal External overall bezel dimension 61 x 33 x 14 mm Hole Dimensions 58 x 28 mm
Backlight colours available: (you choose from the drop-down menu)
Green Blue White

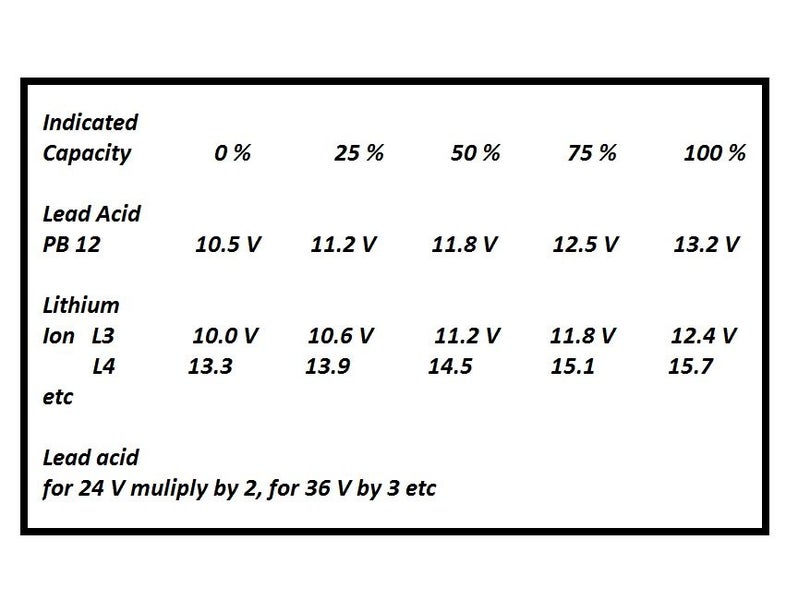

Configuration see the photo perfect for checking the capacity of those lead acid kontiki batteries. mobility scooter battery, RC batteries, solar battery bank, LiPo cordless power tool battery pack
Whats Shipped 1 x Voltmeter Lead Acid-LiPo battery capacity12-24-48V (colour of your choice) 1 x Plug in Supply cable with tails
We dont mark up on shipping so be assured of the best deal possible, LOWEST prices on product and shipping, combined shipping welcome ! Just pay the highest courier charge of any item and the rest travel for free, any amount! We use CourierPost and deliver to PO boxes All goods located in NZ All goods come with 12 month RTB warranty Thanks
