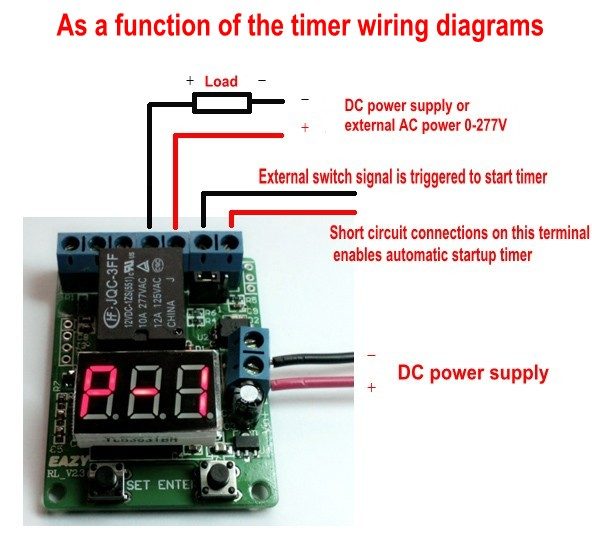

A versatile easy to set Timer, Voltage level detector-timed output, pulse counter-timed output with changeover relay contact output. NC NO It can perform timing functions in the range of 0.1 seconds to 999 minutes duration as a basic timer, timing after power up, after a switch input, after a certain number of pulses or after a voltage threshold is reached. All settings are done via two switches and an onboard display Uses for this type of timer are limitless. The board measures 51mm x 40 mm x 19 mm deep

Option 1: 12V Version Relay parameters: Coil Voltage: DC 12V (5V,24V optional) A set of clean contacts (normally open and normally closed) Contact load: 10A/277V AC or 10A/30V DC Contact resistance: = 100mO (1A 6VDC) Electricity durability: > 100,000 (10A-250VAC) Operating Temperature: -40 ~ 85? External signal input: (5~ 12V) or passive switch (9 levels delay time can be set)

Option 2: 24V Version Relay parameters: Coil Voltage: DC 24V A set of clean contacts (normally open and normally closed) Contact load: 10A/277V AC or 10A/30V DC Contact resistance: = 100mO (1A 6VDC) Electricity durability: > 100,000 (10A-250VAC) Operating Temperature: -40 ~ 85? External signal input: (5~ 12V) or passive switch (9 levels delay time can be set)

Option 3: Housing (Sold Separately) Parameters: Length incl tabs:80mm Width: 45mm Height: 26mm

-Full English instruction manual available on purchase

Select options from the drop-down menu

long duration timer, counter, battery charging timer, threshold detector, pulse counter, low voltage alarm, solar disconnector, overvoltage cutout,
