Description
Package Included

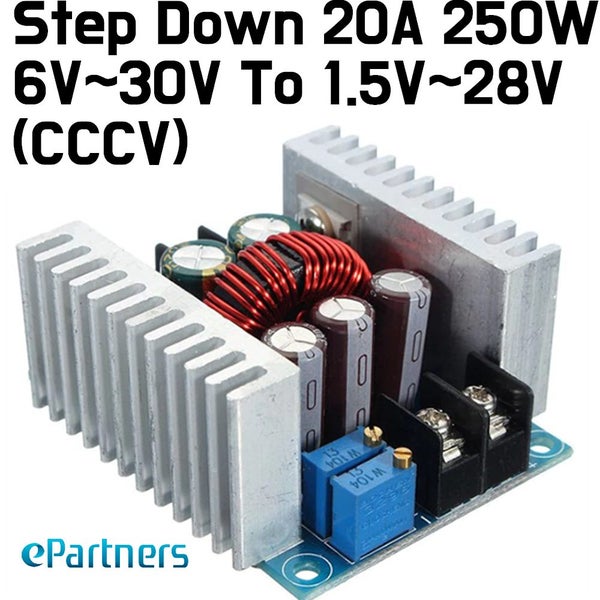

- 1x 250W 20A DC-DC Buck Converter Step Down Module Constant Current LED Driver Power
Description
- Input Voltage: 6V to 30V DC
- Output Voltage: 1.5V to 28V DC
- Output Current: 20A(max.), 15A(suggested)
- Efficiency: 95%(24V to 12V, 20A)
- Output Ripple: =50mV
- Wiring Method: Terminal
- Short Circuit Protection: Self-recovery(cannot short circuit for long time)
- PCB Colour: Blue or Black

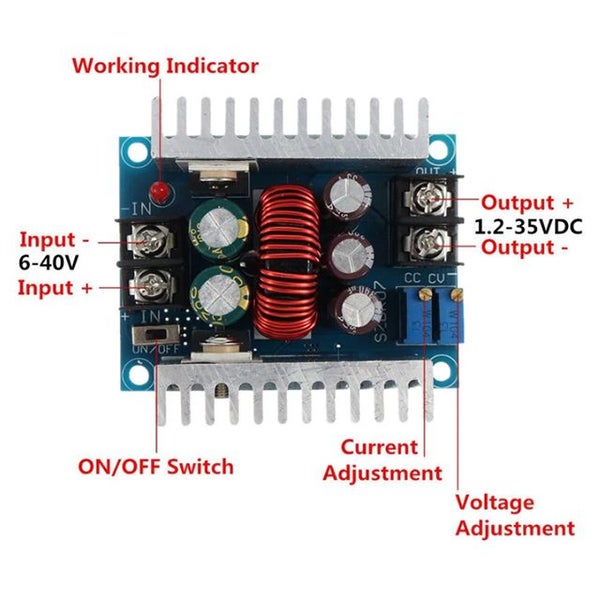

- VO+: Output positive
- VO-: Output negative
- +IN: Input positive
- -IN: Input negative
- CV: Output voltage adjustment
- CC: Output current adjustment
- EN: Enable, low voltage level shut off output
- The input voltage should not exceed the maximum input voltage.
- There could be a maximum output voltage difference of around 5%.
NOTE: The trimpot on this module may need several turns to see any change in the output voltage.
CAUTION: The product is not designed for commercial use like medical, life-saving, life-sustaining, etc., and cannot be used in dangerous places such as coal mine oil depots.
