Description:

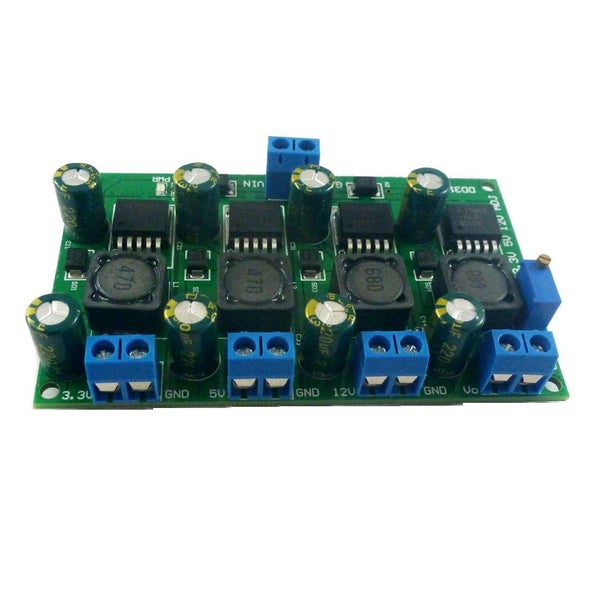

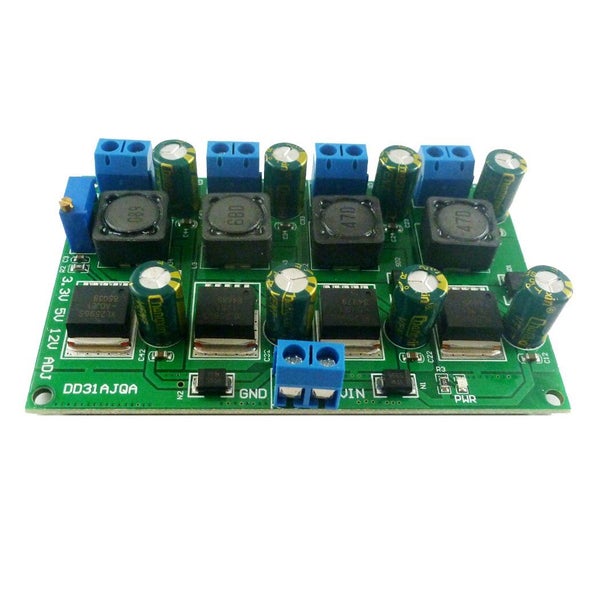

4-channels Step-down Buck DC-DC Converter power module

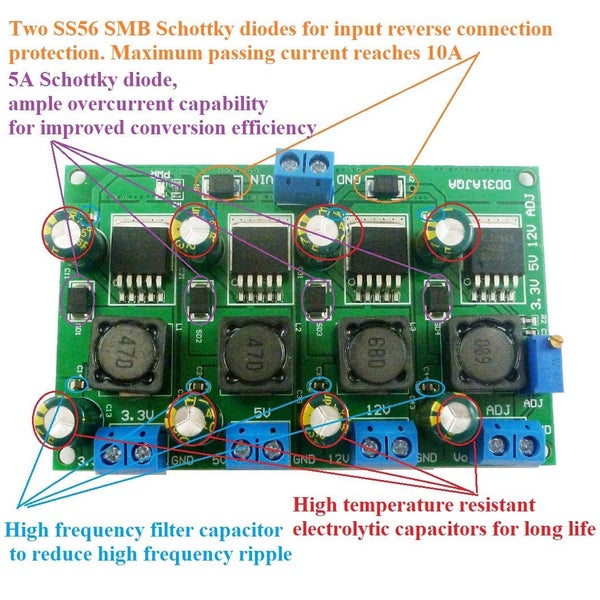

3.3V output: Input 4.5-30V, Output 3.3V (?R3%) 5V output : Input 6.5-30V, Output 5V (?R3%) 12V output : Input 13.5-30V, Output 12V (?R3%) AJD output : Input 4.5-30V, Adjustable Output 2-28V Maximum output current per channel : 3A; Overall maximum load power: 50 watts Master chip : XL2596(compatible LM2596) Working frequency 150KHz. Input reverse connection protection Built in thermal shutdown function,Built in current limit function,Built in second current limit function

Operating Temperature :¨C40?aC to +85?aC Storage Temperature : ¨C65?aC to +150?aC Size : 88 x 55 x 15mm Weight : 57g

Attention : This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself

Applications:

MCU ARM STM32 CPU FPGA/CPLD UNO MEGA3560 PTZ CCTV IP camera Smart home / home automation WIFI Router Switch Network equipment LED Motor Lead-acid batteries Battery powered equipment Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
