Description:

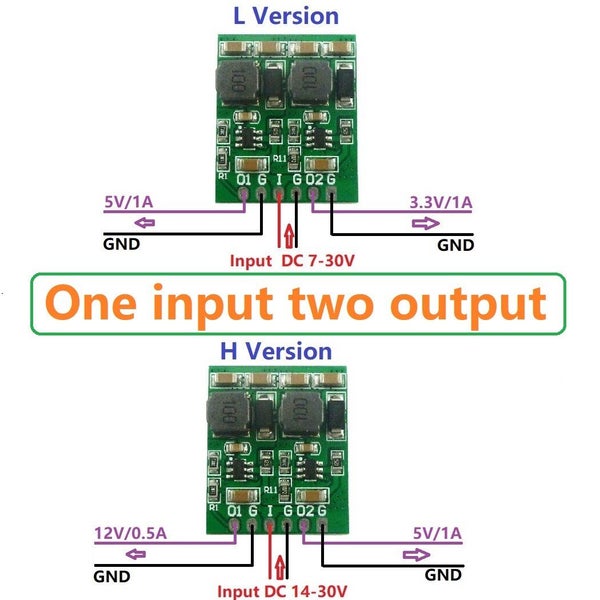

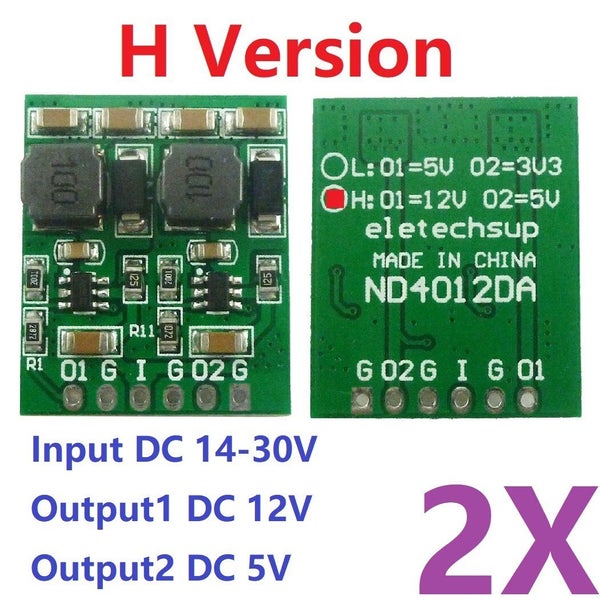

H Version:Input DC 14-30V,Output1 DC 12V/Output2 DC 5V H Version Maximum Output Current : 12V/0.5A;5V/1A DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 75-90% . Quiescent current: about 1MA Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection. 2.54mm pin pitch, Arduiuo UNO MEGA2560 Breadboard MCU Development Board friendly Size : 25mm x 21mm x 5.8mm(Small) Weight : about 3g(Light)

Pin description:

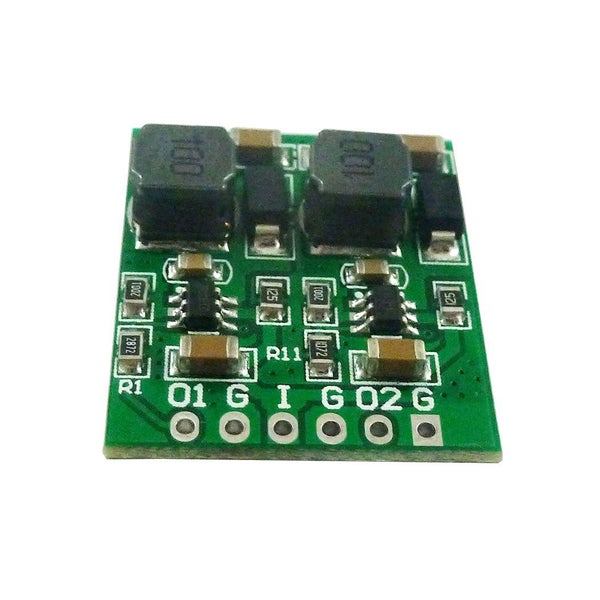

O1 : Output 1 positive + G : Output 1 negative - I : Input positive + G : Input negative - O2 : Output 2 positive + G : Output 2 negative -

Attention :

This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself

Applications:

3.3V 5V MCU ARM CPU FPGA/CPLD 12V 5V 3.3V lithium battery-powered systems Small Motor ?Toy WIFI esp8266 HC-12 Bluetooth Module CCTV camera Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee Smart home / home automation Distributed Power Systems Battery Charger Pre-Regulator for Linear Regulators FM radio Battery powered equipment Audio amplifier

Packing list:2 PCS 10W Dual output DC DC Buck Converter Estimated delivery timeLsAbout 10 business days.We will use standard shipment for the orders. Normally it may need about 10 days, but sometimes please note: Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.
