Description
Description:

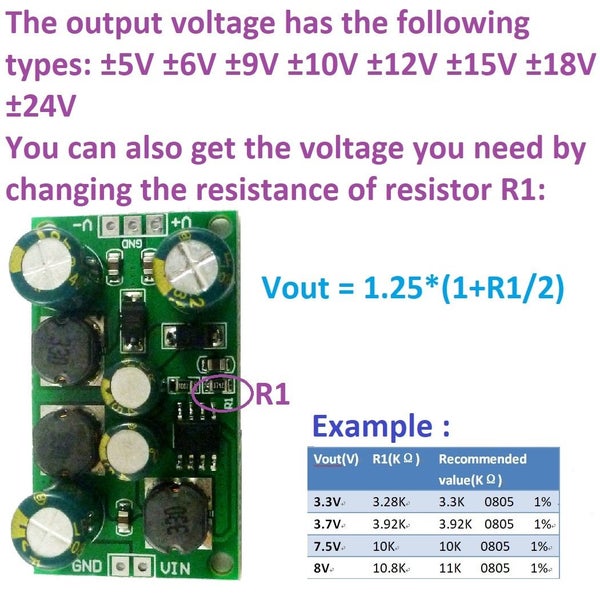

Input voltage 3~24V,output optional ?R24V Maximum output power: 1-8W Conversion efficiency :70-90% Quiescent current: 3-4mA Accuracy : Positive voltage ?R3%,Negative voltage ?R5%
8W DC-DC Boost-Buck Converter working frequency 400KHZ. Operating ambient temperature : -40~+85 Degrees Celsius
Size : 42 x 24 x 15mm Weight : 10g
High efficiency up to 90% Built in Frequency Compensation Built in Soft-Start Function Built in Thermal Shutdown Function Built in Current Limit Function
Note: 1 In order to obtain a more stable voltage, it is recommended that the output is greater than 10MA 2 V- cannot be used alone, or no voltage output.But you can just use V+
Estimated delivery timeLsAbout 10 business days.We will use standard shipment for the orders. Normally it may need about 10 days, but sometimes please note: Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.
Details
Shipping & pick-up options
| Destination & description | Price per item | |
|---|---|---|
| Free shipping within New Zealand | Free | |
Estimated delivery times in business days
Pick-ups not available
GST included.
Payment Options
Pay instantly by card and Ping balance.
Four fortnightly interest-free payments.
Questions & Answers

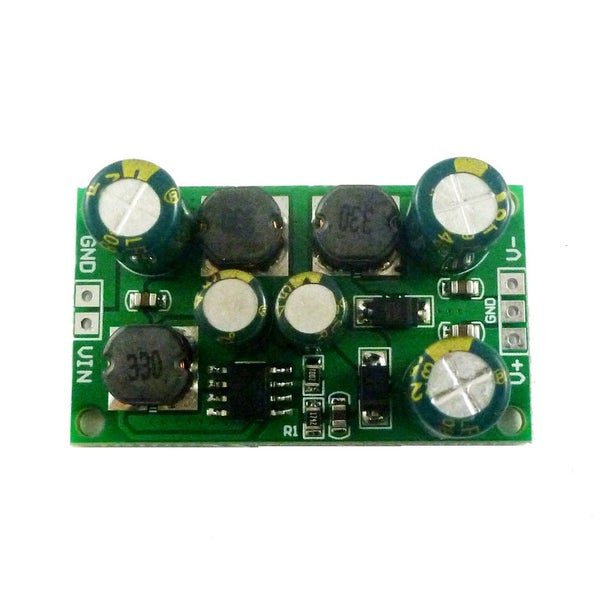

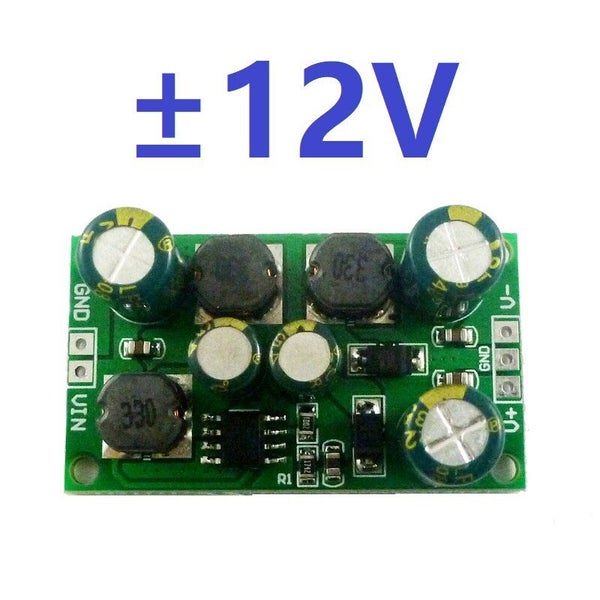

2 in 1 8W Boost-Buck Dual +- Voltage Board 3-24V to 24V
