Description:

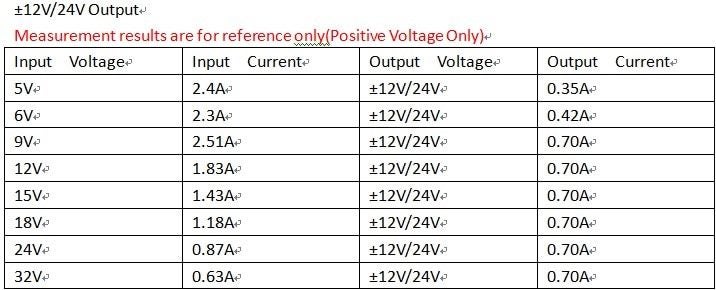

2 in 1 Isolated DC-DC Boost-Buck Converter Input Voltage Range: 5-32 VDC Output Voltage : ?R12V/+24V(MAX 700MA); ?R15V/+30V(MAX 550MA) Minimum Load Requirements: 0% (as+24V/+30V Output), 10% (as +-12/+-15 Output) Efficiency : 70%-88% Quiescent current : 68mA(Input 12V) Low Noise : 50mV Hihg Accuracy Ls+/-1% Working frequency 400KHz Isolation (Input to Output): 1500VDC minimum (1 minute) Isolation Capacitance: 1200pF Short Circuit Protection Operating ambient temperature : -40~+85 Degrees Celsius Storage Temperature Range: -55 to +125 Degrees Celsius Size : 68 x 44 x 16mm Weight : 39g(With terminal), 34g(no terminal)

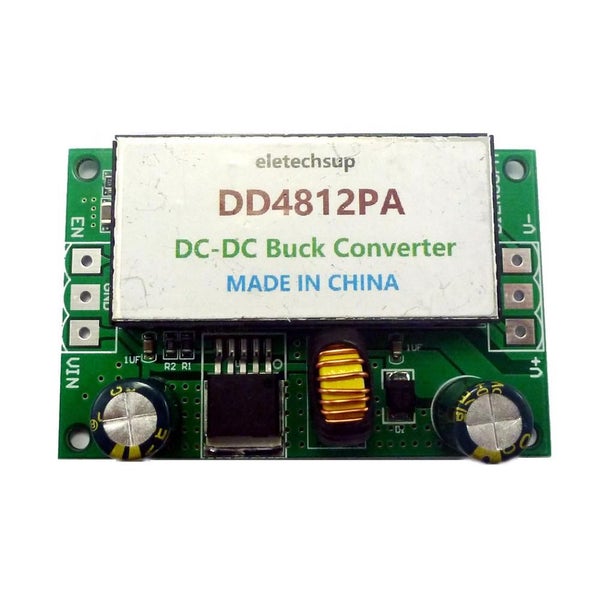

Pin description:

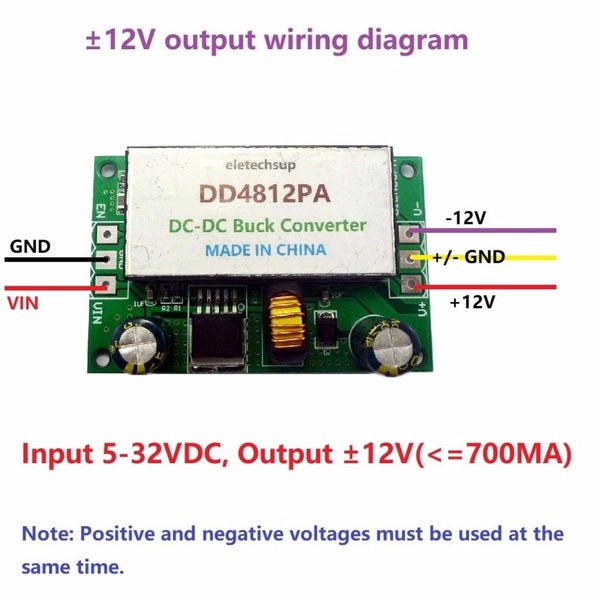

VIN : Input positive GND : Input negative EN : Input enable (NC or VIN enable, GND disabled) V+ : Isolated output positive voltage COM : Isolated output common V- : Isolated output negative voltage

ApplicationsLs

ADC/DAC/Operational Amplifier RS232 RS485 RS422 Bus Audio equipment Low power audio power supply Car audio amplifier dual power board LCD power supply Instrumentation equipment Instrumentation multimeter

Attention :

This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself

Packing list:1 PCS 5-32 VDC to ?R12V/?R15V Isolated DC-DC Buck Converter Estimated delivery timeLsAbout 10 business days.We will use standard shipment for the orders. Normally it may need about 10 days, but sometimes please note: Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.
