Description
Summary

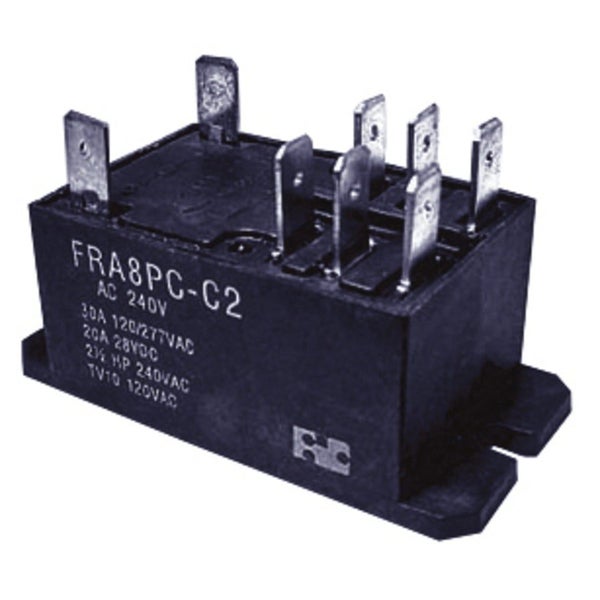

This 240V AC Panel Mount Relay features a coil resistance of 4500 ohms at 50Hz and a coil current of 16.7mA. It has a pickup voltage of 192V and a drop out voltage of 48V, with a power consumption of 4W. The relay is designed for panel or chassis mounting and supports dual mode input (DC or AC).
Features
- Coil resistance: For 50Hz: 4500 ohm
- Coil current: 16.7mA
- Pickup voltage: 192V
- Drop out voltage: 48V
- Power consumption: 4W
Specifications
- Coil Resistance: 3800Ohm
- Input: DC or AC Dual Mode
- Contact format: DPDT
- AC Contact Voltage: 240V AC
- Voltage: 240V AC
- Current Draw: 30A
- Mounting Method: Panel, Chassis

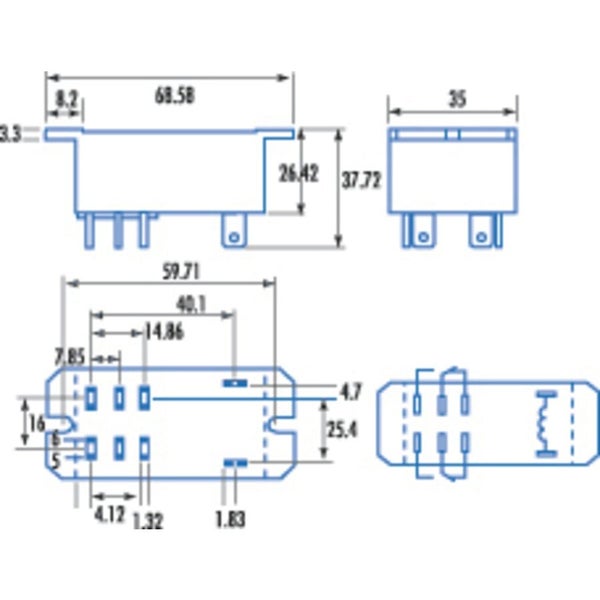

- Length: 68.58mm
- Width: 37.72mm
- Height: 35mm
Documents
The following documents are available to download from the Folders website:
- Datasheet
