Description:

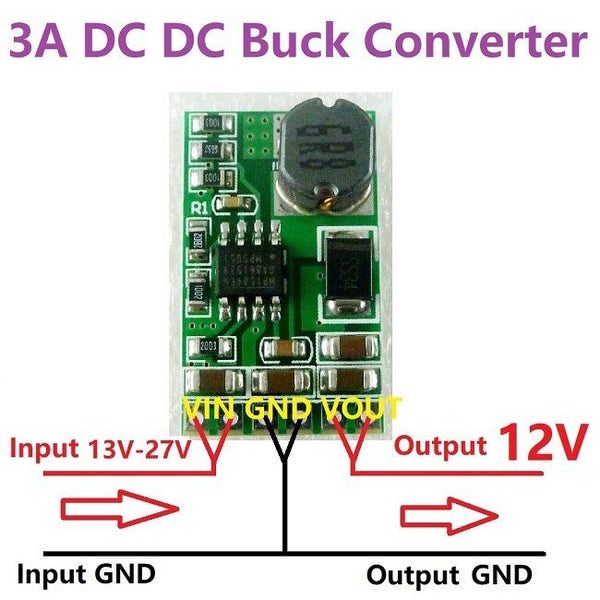

12V : Input voltage 13~27V,output 12V Maximum output current 2A,Short time maximum output current 3A DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% . Quiescent current: about 250uA Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection. Operating Temperature :¨C20?aC to +85?aC Size : 25 x 15 x 6.3mm Weight : 2.4g

Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself

Applications:

Motor ?Toy WIFI Router Switch Network equipment Multimeter instrumentation CCTV camera Electric toys Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee Smart home / home automation Distributed Power Systems Battery Charger Pre-Regulator for Linear Regulators FM radio Battery powered equipment Audio amplifier

Packing list:

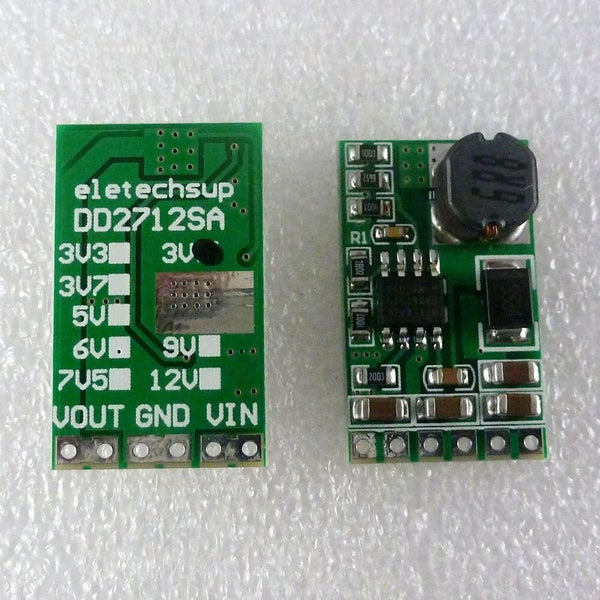

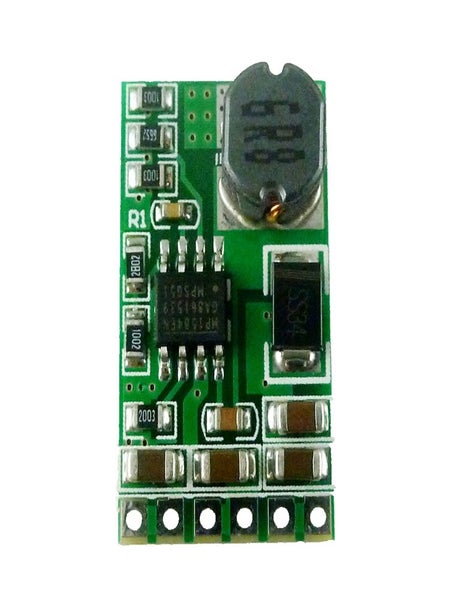

1 PCS DD2712SA 3.5A DC DC Step Down Converter Module 4.5V-27V to 12V Estimated delivery timeLsAbout 10 business days.We will use standard shipment for the orders. Normally it may need about 10 days, but sometimes please note: Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.
