Description:

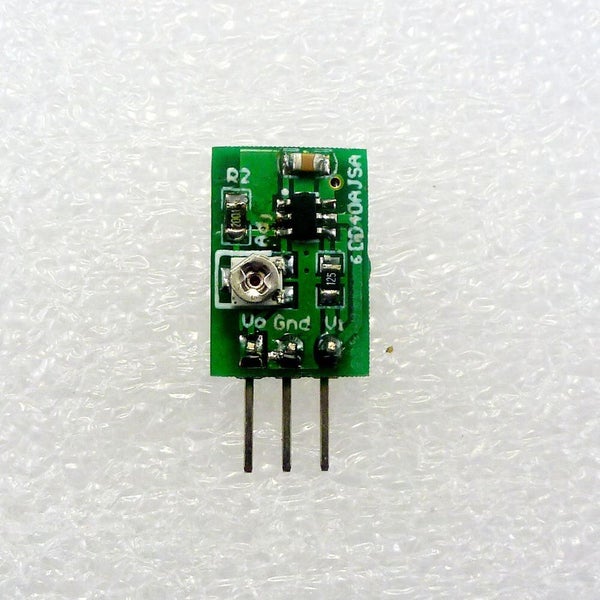

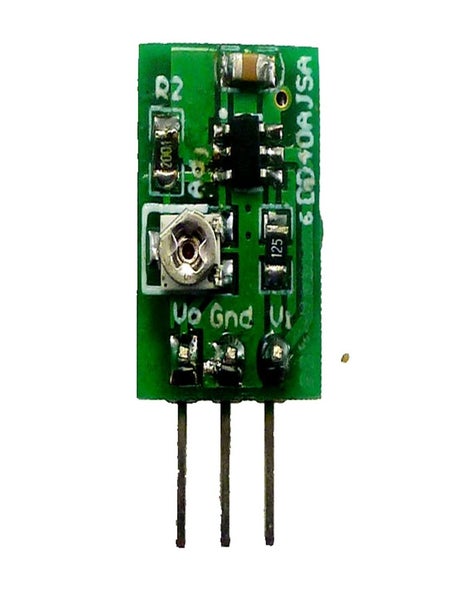

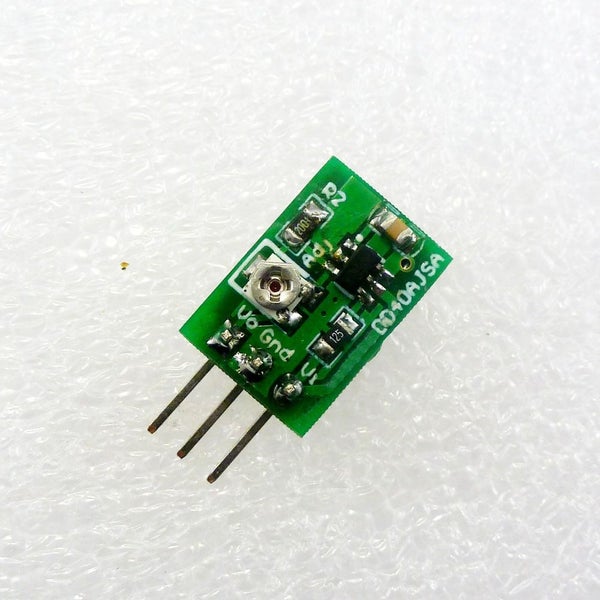

Input voltage 4.7540V,Adjustable output 0.930V Long time maximum output current 0.8A(12V to 5V) Short time maximum output current 1A(12V to 5V) Quiescent current: about 1.5MA DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 75-90% . Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection. 2.54mm pin pitch, Arduiuo UNO MEGA2560 Breadboard MCU Development Board friendly Excluding Pin Size 15mm x 10.3mm x 6.8mm(Very small) Weight : about 1.5g(Very light)

Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself

Note: Adjustable resistors (potentiometers) are components that are easily damaged. Use a suitable screwdriver to slowly rotate. Click here to buy a screwdriver.

Applications: 1.2V/1.5V/1.8V/2.5V/3.3V/5V MCU ARM CPU FPGA/CPLD 12V 5V TO 3.7V lithium battery-powered systems 12V 9V 6V 5V 3.3V Motor WIFI esp8266 Module CCTV camera Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee Smart home / home automation 315M 433M Wireless remote controller Distributed Power Systems Battery Charger Pre-Regulator for Linear Regulators DSL Modems

Packing list:

10 PCS mini 1A DC DC Converter Step Down 4.75V-40V to 0.8-30V Adjustable output Estimated delivery timeLsAbout 10 business days.We will use standard shipment for the orders. Normally it may need about 10 days, but sometimes please note: Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.
