Description:

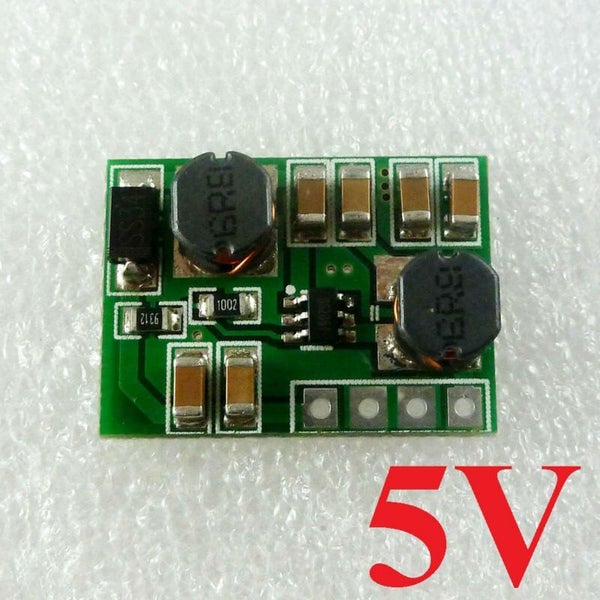

Input voltage DC 2-24V, output DC 5V?R5% (No-load voltage is 5-5.4V) 2 in 1 DC DC Boost-Buck Converter Module working frequency 1.2MHZ.efficiency 70%-90% . Operating temperature range : -40+85 Degrees Celsius Storage temperature range : -65+150 Degrees Celsius 2.54mm pin pitch,MCU Development Board Breadboard friendly. Size : 21.4mm x 15.6mm x 5.8mm(Very small) Weight : 2.2g(Very light)

Applications: Battery powered equipment Breadboard Power Supply ARM STM32 AVR PIC FPGA CPLD Board Small power motors Camera, Video camera Toy car power bank Phone PDA LED Lighting Wireless communication equipment Audio equipment

Attention :

This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A: Q : Why output voltage is less than the nominal voltage A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low

Packing list: 2 PCS DD2412SA_5V 2-24V TO 5V DC DC Boost-Buck Converter Module Estimated delivery timeLsAbout 10 business days.We will use standard shipment for the orders. Normally it may need about 10 days, but sometimes please note: Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.
