Description:

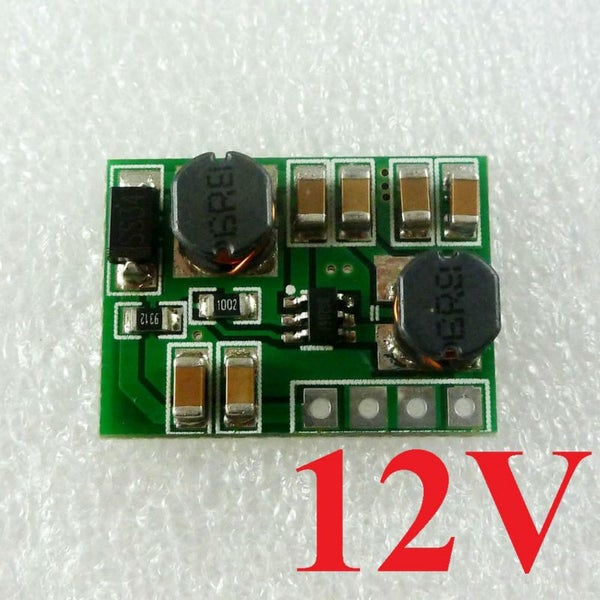

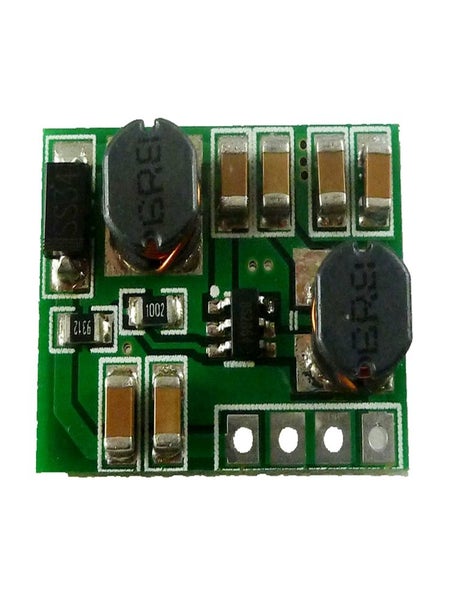

Input voltage DC 2-24V, output DC 12V?R4% (No-load voltage is 12-12.4V) 2 in 1 DC DC Boost-Buck Converter Module working frequency 1.2MHZ.efficiency 67%-89% . Operating temperature range : -40+85 Degrees Celsius Storage temperature range : -65+150 Degrees Celsius 2.54mm pin pitch,MCU Development Board Breadboard friendly. Size : 21.4mm x 15.6mm x 5.8mm(Very small) Weight : 2.2g(Very light)

ApplicationsLs Battery powered equipment Breadboard Power Supply electrical tools Small power motors Camera, Video camera PLC RS485 Modbus Module Toy car Wifi Router IP camera LED Lighting Wireless communication equipment Instruments multimeter

Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A: Q : Why output voltage is less than the nominal voltage A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low

Packing list: 5 PCS DD2412SA_12V 2-24V TO 12V DC DC Boost-Buck Converter Module Estimated delivery timeLsAbout 10 business days.We will use standard shipment for the orders. Normally it may need about 10 days, but sometimes please note: Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.
