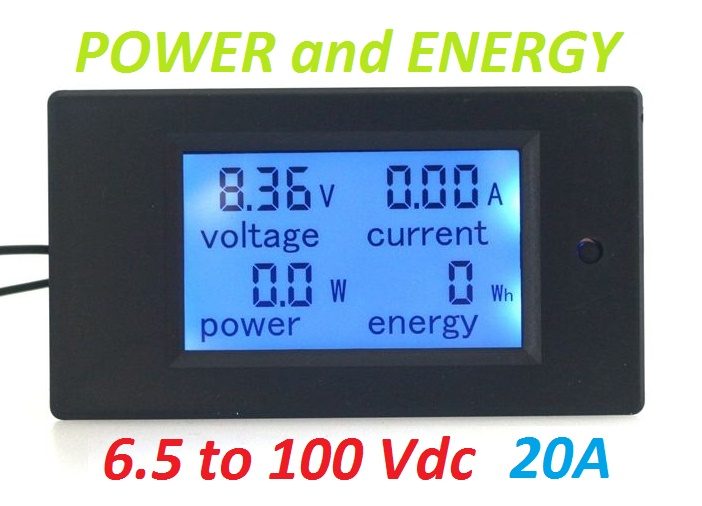

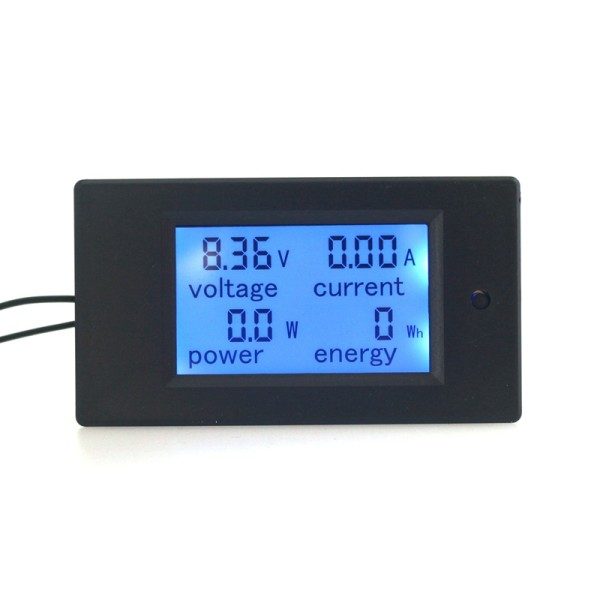

A versatile Panel mount Power, Voltage, Current and Energy meter combined, DC and AC versions available 20 Amp versions are (DC) direct reading-no external shunt 100A DC version comes with an external 75 mV 100A current sense shunt resistor through which the main load current passes. Reset button on front panel clears the accumulated Wh

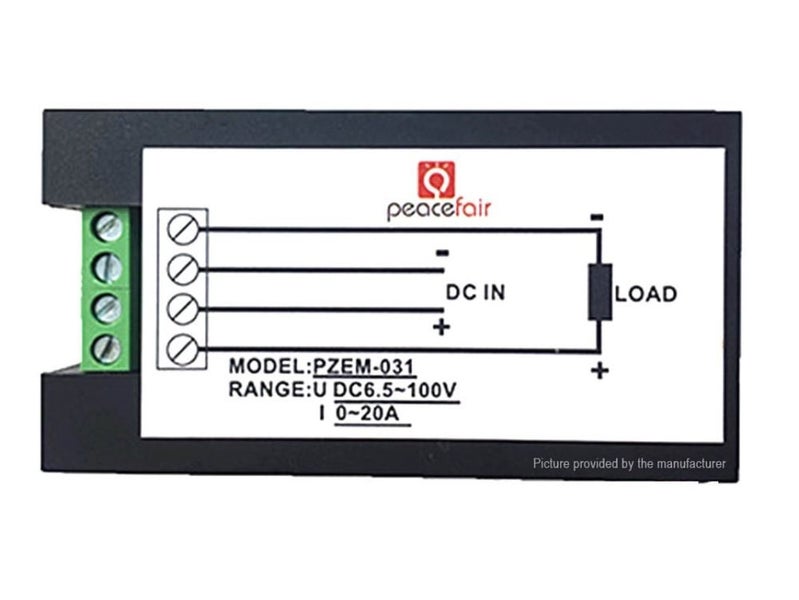

Specifications: DC 20A VERSION direct reading- internal current sense resistor
Dual measurement of DC Voltage and DC current via an internal current sense resistor Voltage Measuring Range: DC 6.5 - 100V dc Current Measuring Range: DC 0 - 20A Power Measuring Range: 0 - 2kW Energy Measuring Range: 0 ~ 9999kWh
DC 50A VERSION external current shunt resistor (supplied)
DC 100A VERSION external current shunt resistor (supplied)
Brand new & high quality! Dual measurement of DC Voltage and DC current via an external current sense resistor Voltage Measuring Range: DC 6.5 - 100V dc Current Measuring Range: DC 0 - 100A Power Measuring Range: 0 - 100kW Energy Measuring Range: 0 ~ 9999kWh
All units Operating Temperature: -10 ºC ~65 ºC Dimensions: 89.6 mm x 49.6 mm x 24.4 mm overall cutout: 84.6 mm x 44.6 mm cutout
