Description

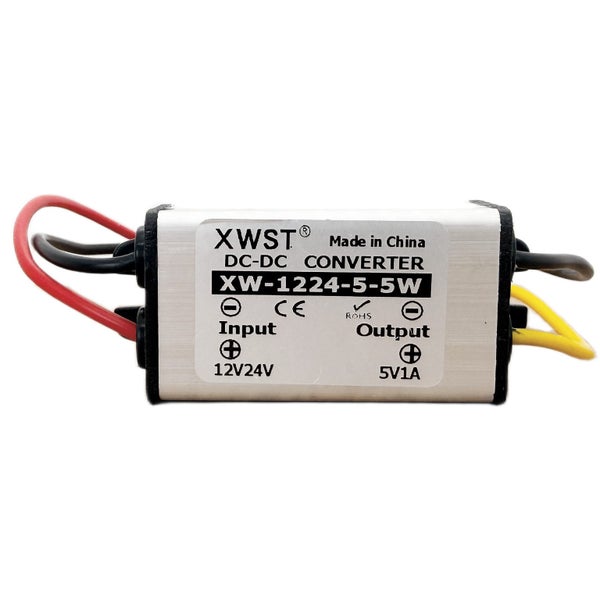

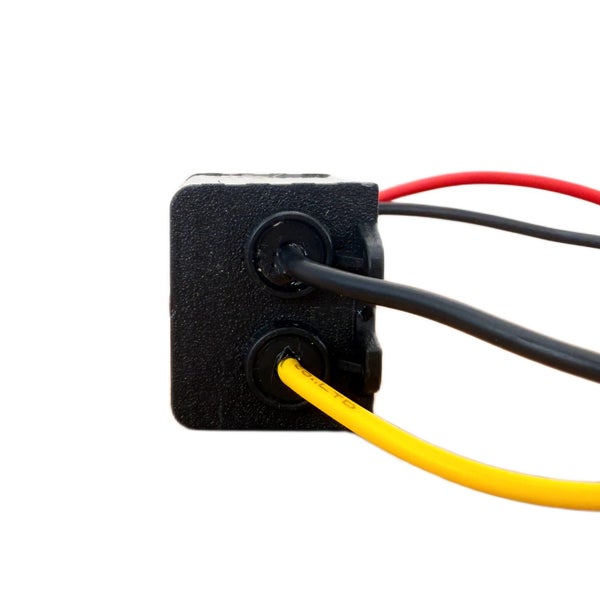

XWST Waterproof DC-DC Buck Converter — 1A (5W) 12V/24V to 5V | IP67 Aluminium Housing | NZ Stock
Step down your 12V or 24V supply to a clean, regulated 5V output. Sealed aluminium housing rated to IP67 — built for permanent installation, not just bench use.
SPECIFICATIONS
Input Voltage: 12V - 24V DC Output Voltage: 5V DC (regulated) Output Current: 1A (5W max) Efficiency: >93% Ripple (full load): 40mV No-Load Current: 3.5mA Waterproof Rating: IP67 Housing: Aluminium alloy Dimensions: 44 x 25 x 22mm (body) Total Length: 58.3 x 20.5 x 25mm (with leads) Weight: 45g Mounting Holes: 4mm diameter, 51mm spacing Operating Temp: -40C to +80C Protection: Over-temperature, short circuit
IDEAL FOR (1A)
- Arduino Uno, Nano, Mega
- ESP32 / ESP8266 / NodeMCU
- Small sensors and IoT nodes
- Webcams and USB accessories
- Single LED strip controllers
- Low-power 3D printer accessories (filament sensors,
- ADXL345 accelerometers, runout sensors)
WHY IP67 ALUMINIUM?
Most cheap buck converters use a bare PCB - fine for a desk, not for real installations. The XWST sealed aluminum housing survives engine bays, outdoor enclosures, inside 3D printer enclosures, and anywhere moisture or dust is a risk. A bare module in the same environment would fail within weeks.
SHIPPING
Urban $5.99 | Rural $9.99 | Free from $59 Fast dispatch from Te Awamutu, Waikato
STORE INFO
Welcome to NZN Electronics — NZ-owned, based in Waikato.
Every item I stock is something I'd use in my own projects. From 3D printers and CNC machines to laser cutters and engineering builds, and more. Good quality, prices that make sense.
All items here at NZN Electronics come with a 12 Month Warranty unless it has been described as a consumable item with a fixed lifespan.
For large or heavy items, please include a phone number at checkout for the courier.
