Features:

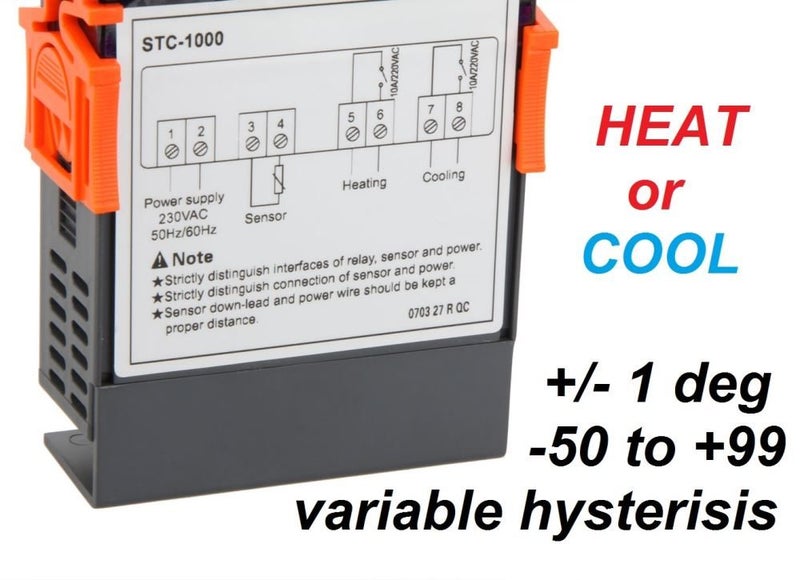

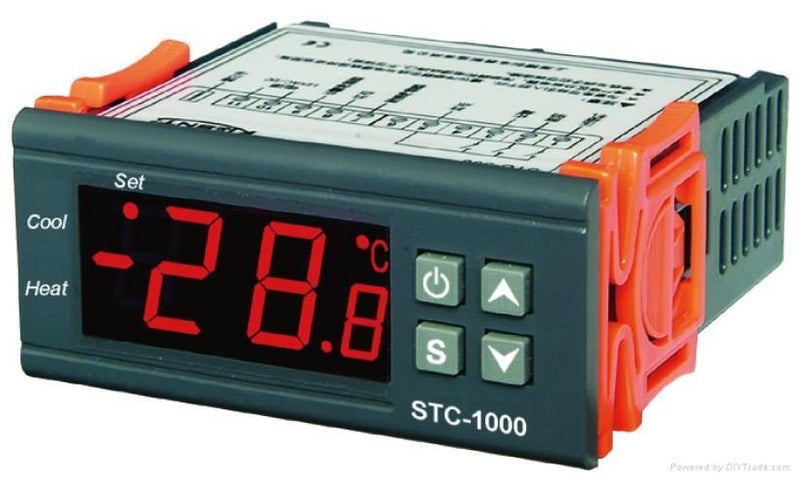

This thermostat has two relay outputs, one for controlling a heating source and the other for controlling a cooling device. Most applications are basic and only require the heater control. Set your desired temperature and the difference value and this device will control within those limits Temperature calibration adjustment. Refrigerating control output delay protection (delay for compressor start) Alarm when temperature exceeds temperature limit or when sensor error.

Specification and Size:

1.Front panel size 75(L)×34.5(W)mm; 2.Mounting size 71(L)×29(W)mm; 3.Product size 75(L)×34.5(W)×85(D)­­mm; 4.sensor length 1 m including the probe.

Technical Parameters: Temperature measuring range: -50 - 99 deg c Resolution: 0.1 deg c Accuracy: ±1 deg c (-50-70 deg c) Sensor error delay: 1 minute Power supply: 24V DC Static power consumption: =3W; Sensor: NTC 10K sensor (1PC); Relay contact capacity: Cool 10A/250V ac ;Heat 10A/250V ac; Ambient temperature: 0-60 deg c Storage temperature: -30-75 deg c Relative humidity: 20%-85% (Non condensating).
