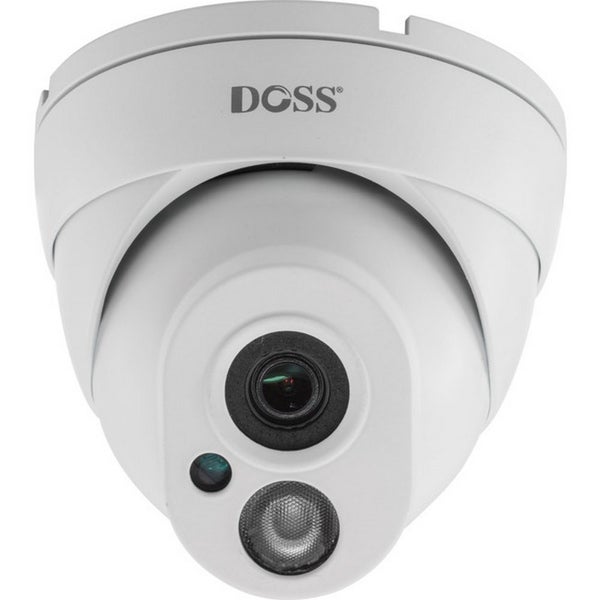

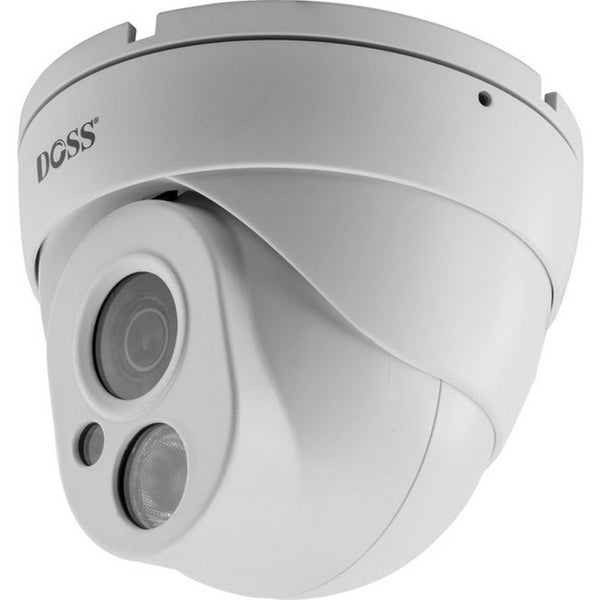

The DOSS IP cameras are the next step in CCTV technology allowing you to install a complete system using a conventional, economical ethernet network. Features like Power over Ethernet and BNC analogue video output make it a breeze for installers. ONVIF compliance allows integration with compatible Networked Video Recorders, no matter the brand, for centralised video capture and back-up. Features 1/2.8" Sony 2.43 Mega Pixels low illumination CMOS Sensor H.264 encoding 1080P (Full HD) 19201080 resolution Conforms to ONVIF (Open Network Video Interface Forum) protocols, Profile-S/G Supports Power Over Ethernet (PoE) Analog BNC output for installers 3.6mm fixed lens provides with approx 83 view 10-15m IR distance / 1x IRIII IR Leds IP65 DC12V with PoE Specifications Model DMW15IPW Camera Sensor 1/2.8" Sony CMOS Pixel Count 2.43MP DSP Hi3516C Resolution 1920x1080 Lens 3.6mm (2MP) Lens type (fixed/varifocal:auto/manual) Fixed Day/Night ICR (Infrared Cutfilter Removal) Auto/B&W/Colour/EXT ICR switching Approx view angle (Horiz) approx 83 Minimum illumination 0 Lux/F1.4 (IR On) Electronic shutter Auto/Manual (1/25 ~ 1/10000) Encoding Stream 1 resolution Up to PAL: 1080P/25fps NTSC: 1080P/30fps Stream 1 Encoding h.264/MJPEG Stream 1 Bitrate 16~8000kbps CBR/ VBR Stream 2 resolution Up to VGA (640*480) Stream 2 Encoding h.264/MJPEG Stream 2 Bitrate 16 ~ 8000kbps CBR/VBR Features Analogue output Yes (BNC, CVBS) IP Rating IP65 IR LEDs 1x IR Array Leds IR Range 10-15m Adjustable IR Brightness NO WDR ATR/D-WDR DWDR Noise Reduction (none/2D-NR/3D-NR) 3D-NR Image adjustment
