Description

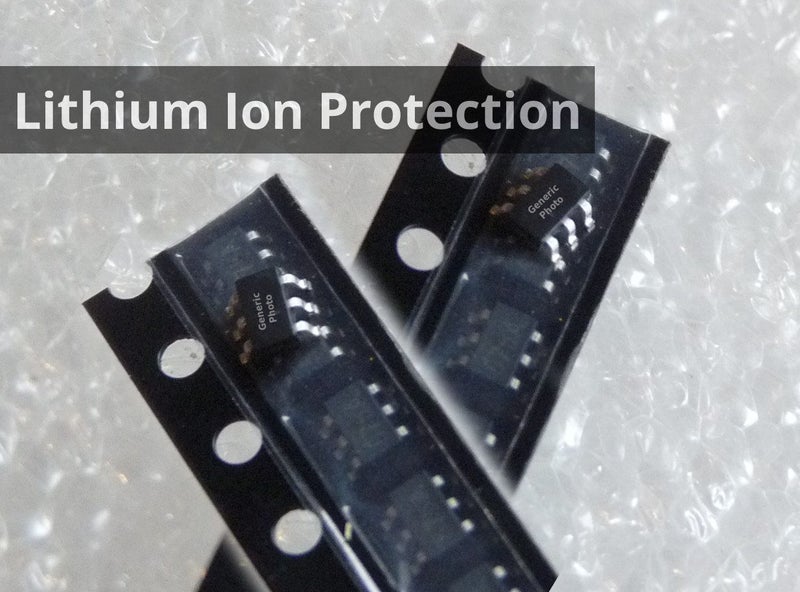

This is the venerable combo of a DW01+ Single Cell Lithium Ion Protection IC and a 8205S Dual Mosfet IC both in SOT23-6 packages.
Each “item” you buy is a pack of
- 1x DW01+ SOT23-6
- 1x 8205S SOT23-6
The DW01+ monitors the battery voltage for over voltage, under voltage, and over discharge current and uses the Mosfet to disable charging or discharging appropriately.
The datasheet for the DW01 has the application circuit, pay careful attention to where each ground is connecting.
A trap for young players is to remember that when you connect a battery you may need to then, at least momentarily, connect a charger to “wake up” the protection circuit so it will allow you to discharge (power your device).
DW01+ Datasheet ( https://tinyurl.com/2c7bd9ql )
8205S Datasheet ( https://tinyurl.com/y86vrcpp )
