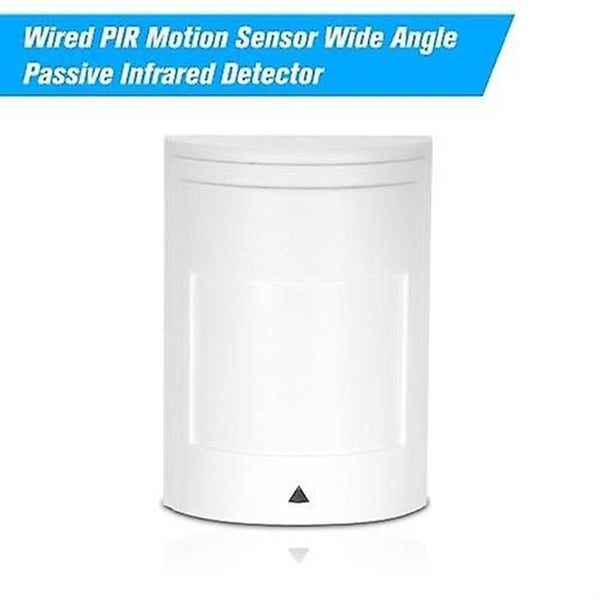

Note: Do not mount the unit in direct sunlight or near heat sources. Overview: This product is a wide angle passive infrared detector, exquisite design, easy installation. Fit for the locations of the balcony, window, door, corridors, etc. Imported high-end infrared sensor, SMT chip technology, anti-EMI & anti-RFI design, temperature compensation, pulse count, LED switch, etc. selectable functions, can be integrated with wired alarm host. Features: *MCU technology to prevent all kinds of false alarms. *SMT chip, anti-EMI & anti-RFI design. Anti-tamper alarm function to enhance anti-damage. *The PIR sensor is a wide angle 10.6mX10.6m with high catch performance and false alarm immunity. *Automatic temperature compensation, adjustable pulse count. *LED ON/OFF optional, better concealment.

Specifications: Working Voltage: 9V-16V
Standby Current: 18mA Alarm Current: 20mA Wide Detector Angle: 110?a 10.6mX10.6m Detection Distance: 12m 25??? Detection Speed: 0.2-7m/s Sensitivity: Level 2 adjustable Installation Way: Wall Hanging Installation Height: 1.1m-3.1m Adjustable Alarm output: NC
LED indicator light: ON/OFF optional
Operating temperature: -10?aC to 50?aC
Item Size: Approx. 9.4 * 6.8 * 5.5cm LWH Item Weight: Approx. 76g / 2.7oz Package Information: Package Size: Approach. 9.8 * 6.8 * 5.6cm / 3.8 * 2.7 * 2.2in Package Weight: Approach. 89g / 3.1oz
Package List: 1 * Wired PIR Motion Sensor 1 * User Manual
