2025 PTE 4 Axle Full Low Loader Trailer

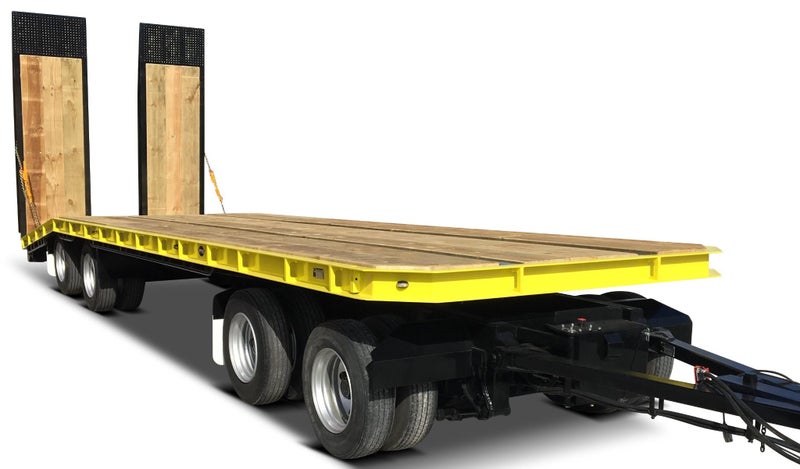

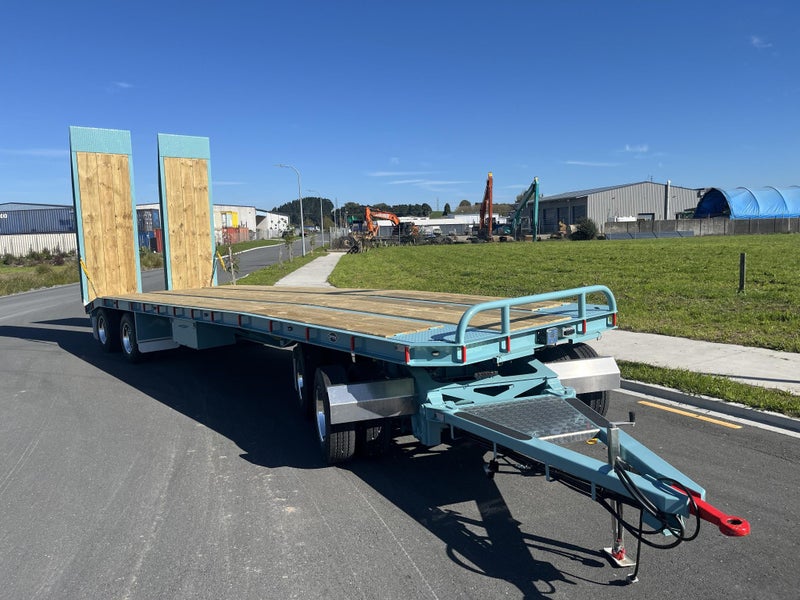

2025 PTE 4 Axle Transporter Trailer.

SPECIFICATIONS Overall length: 11500 Main deck length: 5300 Top deck length: 2900 Main Deck height: 915 Top Deck height: 1035 Rear Overhang: 2400 Beavertail: 875 Tare approx.: 7200 kg Max Gross laden weight: 30000 kg

Axles: 4 x ROR Meritor 15 10 stud, drum brake, lowloader. Suspension: 4 x Weweller Air Suspension c/w dump valve Wheels: 16 of 6.00 x 17.50 10 polished aluminum wheels Tyres: 16 of 215/75R17.5 tubeless Kiwi 17s Toolbox: 2 x Steel, under deck both sides + x2 chain trays in front Drawbar: A Frame, weld in 50mm toweye Brakes: Multi volt EBS, Knorr Bremse brand Load Anchors: 17 per side Rated at 8000 kg Paint: Blasted, primed, painted 2 colours 2K Lights: LED rear and side markers, over width panels with marker lights On Road: Registration, C.O.F, Hubodometer, R.U.C.1000km Deck: 50mm pine, coach bolted, bow rail at front coaming Beaver tail: 12 degrees Ramps: 3.2 long x 1000mm wide, hydraulic from truck, single acting

The PTE Point of Difference:

• 35 years experience in design and manufacture of Low Loader Transport Trailers
• Proven reliability and durability under the most demanding conditions
• In-house design and LT400 certification
• Quality workmanship and components with 24 month build warranty
