2025 PTE 4 Axle Refuse Tip Trailer

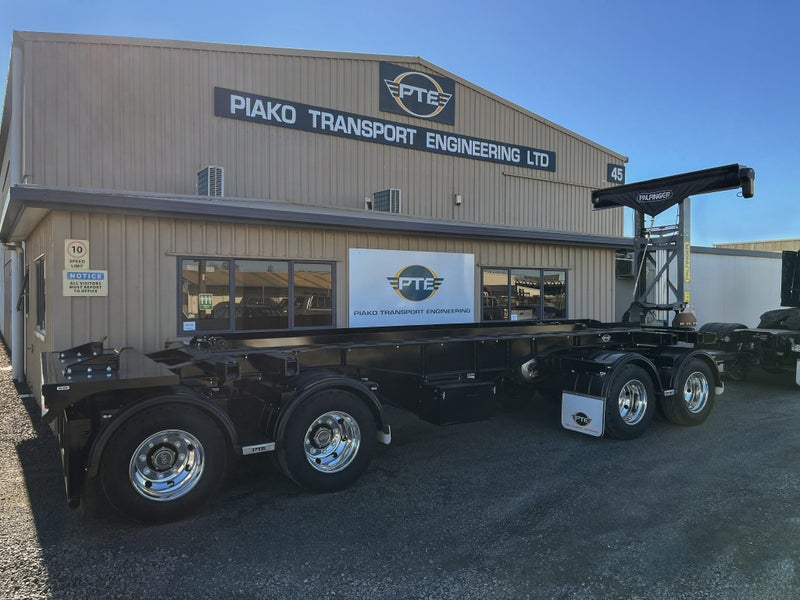

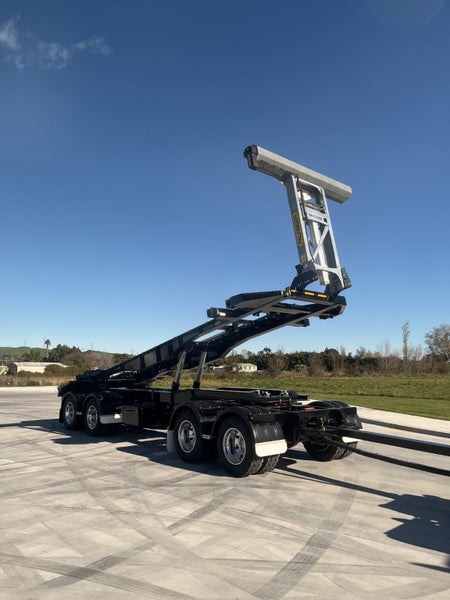

2025 PTE 4A Full Hookloader Tipping Trailer

SPECIFICATIONS GVM: 32 Tonne Overall Length: 11060mm Deck Length: 7700mm Forward Length: 4235mm Rear Overhang: 1430mm Axle Spacing: 1250mm front & 1300mm rear Width: 2500mm Load Anchorages: 4 Per side @ 12T each & Bin Locks at 24T Deck: 6mm HT wear plate Axles: ROR 19.5 Disc Axles (x4) Suspension: SL9 Integrated air suspension Brakes: Knorr Bremse EBS Wheels: Aluminium with Kiwi 265 65 19.5 tyres Mudguards: Rhino plastic guards Lights: Sealed looms with Hella LED Drawbar: Sliding 2865mm long with 50mm weld in tow eye Hydraulics: Mega Pacific Underbody Hoists powered from Truck PTO Toolboxes: 1 x Under deck and 1 x chain tray in deck Options: Palcover with opening arm, Wabco brakes, SAF Suspension & axles, 5 axle HPMV builds

The PTE Point of Difference: 35 years experience in design and manufacture of Low Loader Transport Trailers Proven reliability and durability under the most demanding conditions In-house design and LT400 certification Quality workmanship and components with 24 month build warranty
